A gooseneck microphone SIP phone is not just a regular VoIP desk phone with a larger microphone. In dispatch rooms, duty offices, security centers, industrial sites, campuses, logistics parks, transportation stations, and emergency communication projects, it can become a practical desktop dispatch terminal. With SIP registration, a flexible microphone, programmable keys, a large screen, and optional video capability, the device helps operators speak clearly while keeping both hands available for other tasks.
Its value becomes stronger when it is connected with a RoIP gateway. The operator can use the SIP phone to call radio channels, communicate with two-way radio users, trigger group communication, and coordinate field teams from a desk. This creates a simple but effective bridge between IP communication and traditional radio communication.
For many organizations, this approach is more practical than replacing all existing radios. Field teams can continue using handheld radios or vehicle radios, while the control room gains a clearer, more visual, and easier-to-manage communication terminal.

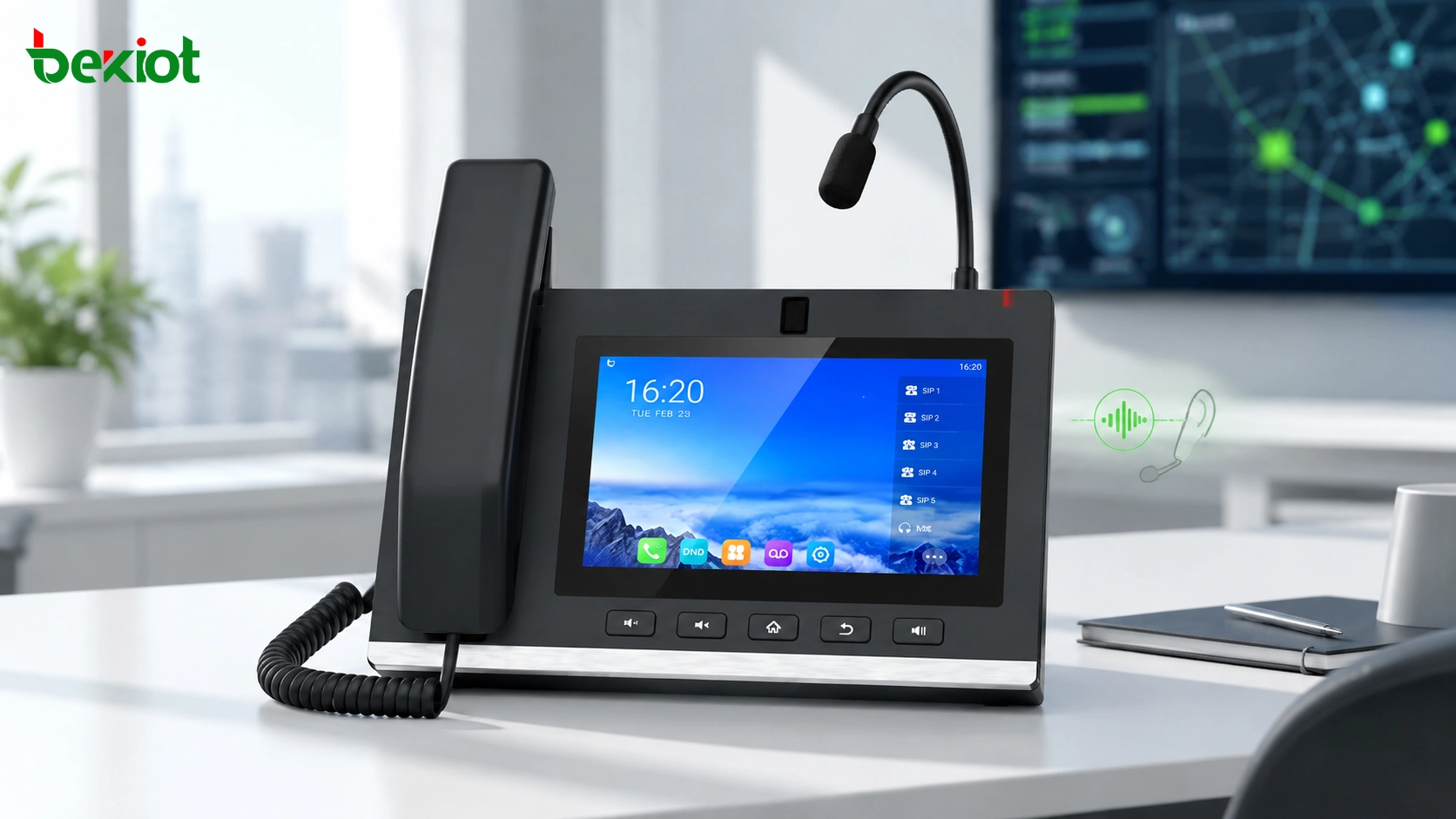

In a duty room or control room, operators often need to talk while watching screens, checking alarms, writing records, handling software, or coordinating with other staff. Holding a handset all day is inconvenient, and relying only on a standard hands-free microphone may cause weak pickup, background noise, or unstable voice clarity.
A gooseneck microphone solves this problem in a direct way. It can be adjusted toward the speaker and positioned closer to the mouth. This improves voice pickup and makes the far-end listener hear instructions more clearly. For command-style communication, this is more suitable than a normal office phone speaker mode.
This is why gooseneck microphone SIP phones are useful in security rooms, factory duty stations, transportation control rooms, emergency command desks, campus control rooms, public address operation points, and small dispatch centers. Operators can speak naturally without interrupting their screen operation or written work.
A SIP phone can register to an IP PBX, SIP server, or communication platform like a normal VoIP endpoint. A RoIP gateway can also provide SIP interconnection capability, allowing radio channels to be mapped into SIP extensions. Once the phone is registered to the gateway or related SIP platform, it can call radio channels by dialing assigned extension numbers.
In a typical setup, each radio channel is assigned a separate SIP number. One channel may represent a security group, another may represent a maintenance team, another may serve production coordination, and another may be reserved for emergency response. The dispatcher does not need to hold a radio directly. The SIP phone becomes the desktop access point for radio communication.
This design is especially useful when an organization already has two-way radios in the field but wants to add IP-based dispatch in the control room. The existing radio system can remain in use, while the SIP phone and RoIP gateway provide a cleaner operator interface.
The RoIP gateway is the connection point between the SIP network and the radio system. It converts audio and control signals between the two-way radio side and the IP communication side. In many projects, one gateway can connect several radio channels, and each channel can be assigned an independent SIP extension.

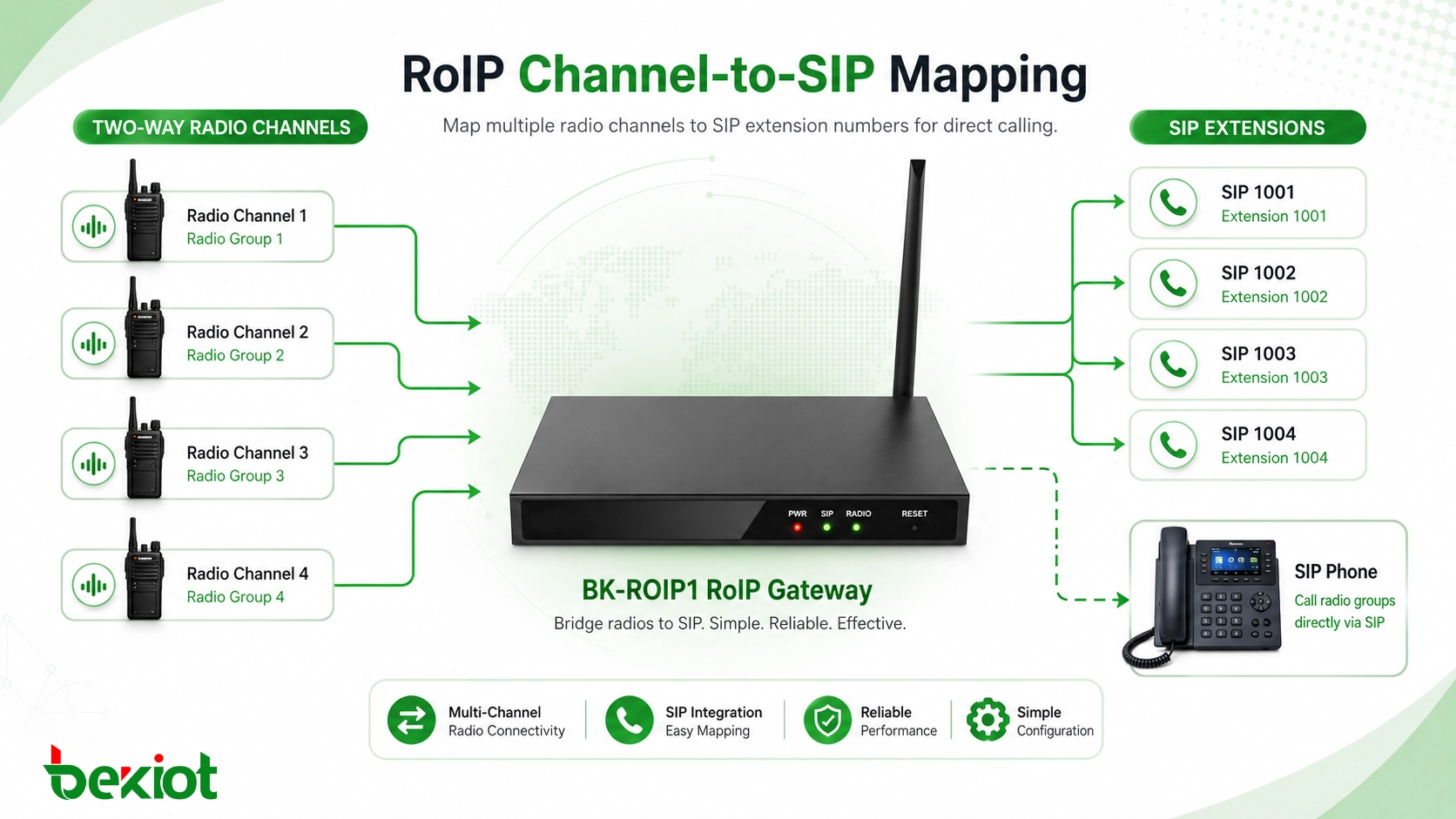

For example, a four-channel RoIP gateway can map four radio channels to four SIP numbers. The SIP phone can call each number directly. If the phone supports programmable DSS keys, the dispatcher can set one key for each radio channel. Pressing one key then connects the operator to the required field group.
This reduces operation complexity. Dispatchers do not need to remember many extension numbers, switch between several radios, or manage separate devices. The phone screen, contact list, and programmable keys provide a more visual workflow for daily dispatch.
Dispatch work depends on speed and accuracy. If operators need to search contacts, dial long numbers, or move between different devices, response efficiency will drop. A SIP phone with programmable keys can turn frequently used radio groups, SIP extensions, paging zones, or emergency contacts into one-touch actions.
Large-screen SIP phones usually support multiple DSS keys, contact pages, SIP accounts, and line appearances. This allows the device to work as a lightweight desktop communication console rather than a simple office telephone. The key layout can be arranged by department, area, team, priority, or emergency workflow.
For example, the first key group can be assigned to radio channels, the second group to internal SIP extensions, the third group to paging zones, and the fourth group to emergency contacts. A clear layout helps operators act faster and reduces the risk of calling the wrong target during urgent communication.
A RoIP gateway with built-in SIP server capability can simplify small and medium-sized deployments. Instead of adding a separate IP PBX in every project, the gateway can allow SIP phones, SIP intercoms, SIP paging devices, and other SIP terminals to register directly.
In the original application scenario, the gateway can support up to 200 SIP terminal registrations. This gives the system enough room for common project expansion, such as adding duty-room phones, SIP intercoms, paging microphones, security posts, office extensions, emergency call points, or small dispatch terminals.
For larger systems, the architecture can still connect to a dedicated IP PBX, SIP server, or converged dispatch platform. The important point is that SIP provides a flexible communication foundation. Phones, gateways, intercoms, paging devices, dispatch consoles, and radio channels can be organized under one unified communication framework.
Voice clarity is critical in radio dispatch. If the dispatcher’s voice is too weak, too loud, distorted, or unclear, field teams may miss important instructions. A gooseneck microphone improves the speaking side of the communication path by providing better pickup position and clearer voice direction.
The radio side also needs careful tuning. Gateway input and output levels, radio interface cables, audio gain, PTT control, codec settings, echo, delay, and background noise should be checked during deployment. A system may be technically connected, but if the audio quality is poor, users will not trust it in daily operation.
Professional testing should include SIP-to-radio calling, radio-to-SIP calling, group communication, emergency calling, long-duration voice operation, and recovery after network interruption. This confirms that the system works in real duty-room conditions, not only during a short demonstration.
Many large-screen SIP phones also support video calls. This expands the device beyond voice dispatch. In a control room, the operator may use the same terminal for SIP voice calling, video intercom, visual confirmation, remote coordination, or small video meetings.
When used with video intercoms, monitoring platforms, SIP video devices, or video access gateways, the phone can support lightweight visual communication. For example, a dispatcher may speak to a field radio group through the RoIP gateway while checking a related video source on another screen. In a security center, the phone can support radio dispatch and video communication with entrances, gates, or field stations.
This does not mean the SIP phone should replace a full dispatch platform or video management system. Its role is to provide a convenient endpoint for daily communication, quick confirmation, and lightweight visual collaboration.

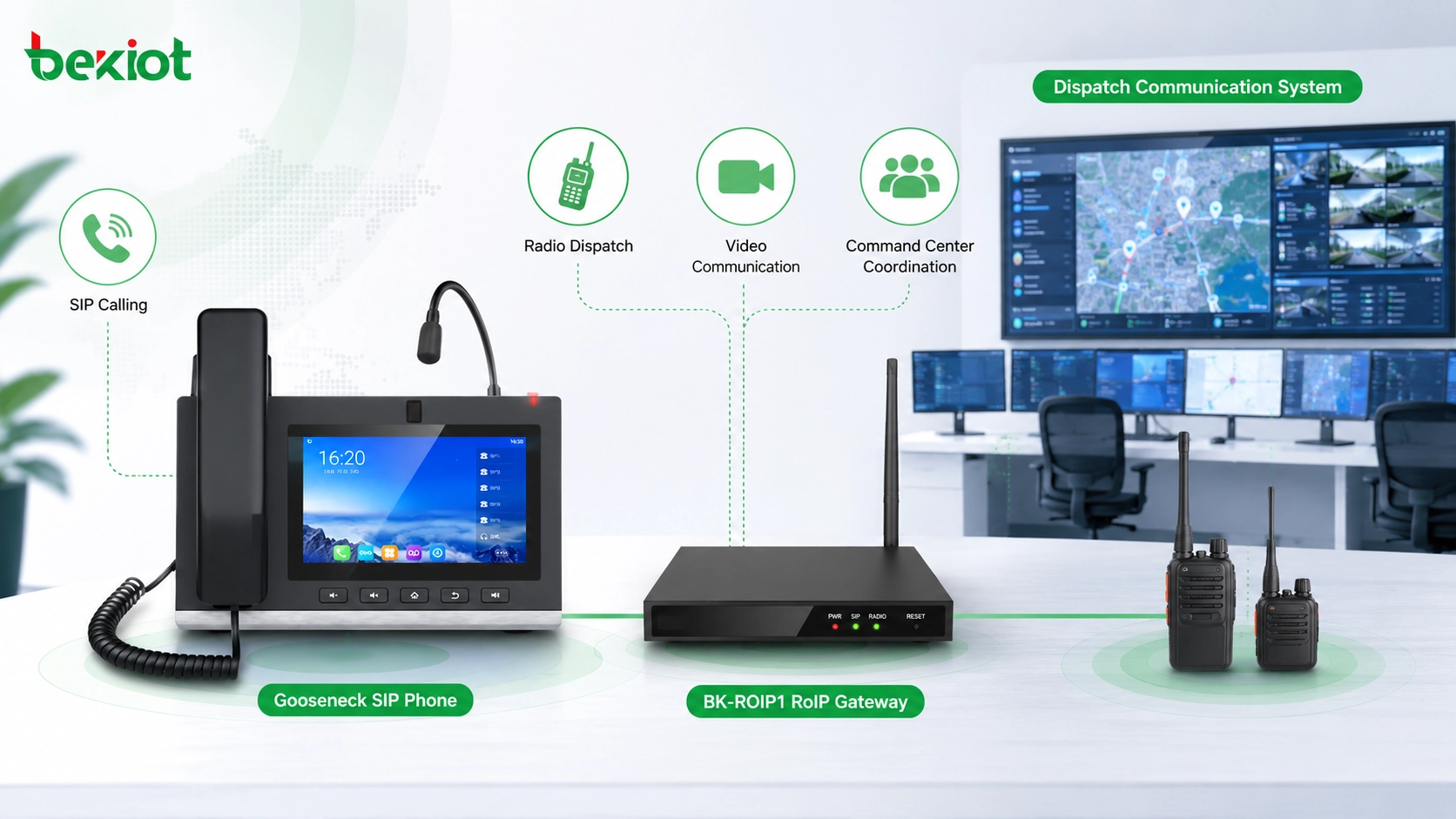

A basic solution usually includes field two-way radios, a RoIP gateway, a network switch, a gooseneck microphone SIP phone, optional SIP intercoms, and optional dispatch software. The RoIP gateway connects to the radio channels and converts them into SIP-accessible communication resources.
The SIP phone registers to the gateway or SIP server. The dispatcher configures radio channels as contacts or programmable keys. When the operator presses a key, the phone calls the related SIP extension. The gateway then bridges the call to the correct radio channel, allowing the dispatcher and field radio users to communicate.
If the project later needs more functions, the system can add SIP paging, call recording, IP PBX integration, mobile clients, video intercom, or a dedicated dispatch console. This staged approach controls the initial investment while leaving space for future expansion.
This solution is suitable for organizations that already use two-way radios but need a more convenient control-room communication method. Typical scenarios include security dispatch, industrial production coordination, property management, logistics parks, warehouses, campuses, transportation stations, utility sites, emergency duty rooms, and small command centers.
In these environments, field workers often prefer handheld radios because they are simple, rugged, and familiar. At the same time, office or control-room users prefer a desktop SIP phone because it provides clearer audio, easier operation, visual keys, and better integration with IP communication systems.
The RoIP gateway connects these two working habits. Field teams continue using radios, while dispatchers gain a professional desktop terminal. For many projects, this is more practical than replacing every radio user with a new terminal at once.
Before deployment, the project team should confirm how many radio channels need to be connected, whether the channels are analog or digital, how the gateway interfaces with the radio equipment, and which SIP numbers should be assigned to each channel. The system should also define who is allowed to call each channel and whether emergency priority is required.
Network planning is also important. SIP phones and gateways should be placed on a stable network with reliable power. If the system is used for duty-room, security, or emergency communication, UPS power, network redundancy, and basic fault recovery procedures should be considered.
Button naming should follow real workflows. Labels such as “Security Channel,” “Maintenance Team,” “Emergency Group,” “Gate Station,” or “Production Line” are easier to understand than pure numbers. Clear naming reduces training time and improves response speed.
One common mistake is treating the SIP phone as only a normal office phone. In this solution, the phone is part of the dispatch workflow. Its microphone position, programmable keys, contacts, SIP lines, screen layout, and call behavior should be configured according to real command habits.
Another mistake is ignoring audio tuning. Radio systems and SIP systems handle audio differently. Gateway gain, radio volume, microphone level, codec selection, PTT response, and network delay all need to be tested. Good voice quality is essential for user acceptance.
A third mistake is building the system without future expansion. If the project may later add more radio channels, SIP intercoms, paging zones, recording, video linkage, or dispatch software, the initial design should reserve enough SIP capacity, network ports, and gateway expansion options.
A gooseneck microphone SIP phone and RoIP gateway can create a low-cost but practical dispatch bridge between control-room operators and field radio users.
For projects that need a desktop paging and radio-dispatch access point, a SIP paging microphone console can be a practical fit. It provides a more comfortable speaking position than a handset, clearer operation than a basic desk phone, and better workflow support than placing a handheld radio on the dispatch desk.
Becke Telcom can be considered as a solution reference for SIP paging microphone consoles, RoIP gateway integration, SIP endpoint access, and converged communication deployment. In small and medium-sized projects, this type of configuration can help users build a more professional dispatch workflow with controlled investment.
The main value of this solution is not that it adds another device to the desk. Its value is that it connects two communication environments: the IP communication system used in offices and control rooms, and the radio communication system used by field workers.
With a RoIP gateway and a gooseneck microphone SIP phone, organizations can build a simple dispatch process. The dispatcher presses one key, the gateway connects the correct radio channel, and field users receive the message through their existing radios. The workflow is easy to understand, easy to operate, and easy to expand.
For many practical projects, this is a cost-effective way to upgrade radio communication without rebuilding the entire network. It improves voice quality at the dispatch desk, simplifies radio channel access, supports SIP endpoint expansion, and leaves room for paging, video communication, recording, or full dispatch platform integration in the future.
Yes. If the RoIP gateway maps different radio channels to different SIP numbers, the SIP phone can call each channel separately. Programmable keys can make this operation faster and easier.
Not always. If the RoIP gateway includes SIP server capability, SIP terminals may register directly to the gateway. Larger projects may still use a dedicated IP PBX or dispatch platform for better management and expansion.
Yes, depending on gateway configuration and radio interface design. In many systems, radio users can communicate with the SIP-side dispatcher through the mapped channel or assigned call path.
The project team should test SIP registration, one-touch channel calling, radio-to-phone audio, phone-to-radio audio, PTT control, delay, noise level, emergency communication, and recovery after network interruption.
It can be part of a larger command system, but large command centers usually need additional functions such as GIS dispatch, recording, multi-seat management, video linkage, alarm integration, centralized permission control, and platform-level monitoring.
