High-voltage load break switches are mechanical switching devices used in medium- and high-voltage power distribution systems. They are designed to make, carry, and interrupt normal load current under specified service conditions. In practical projects, they are commonly applied in ring main units, distribution substations, transformer feeders, overhead lines, cable networks, industrial power systems, renewable energy substations, and utility distribution automation.
A load break switch is not the same as a circuit breaker. Its main role is load switching, feeder sectionalizing, and isolation. A circuit breaker, by contrast, is designed to interrupt fault current. In many distribution networks, load break switches are used together with fuses, protection relays, disconnectors, earthing switches, interlocks, and control devices to support safe and reliable operation.
A high-voltage load break switch can switch normal load current, but it must always be selected and operated within its rated capacity and the safety rules of the power system.

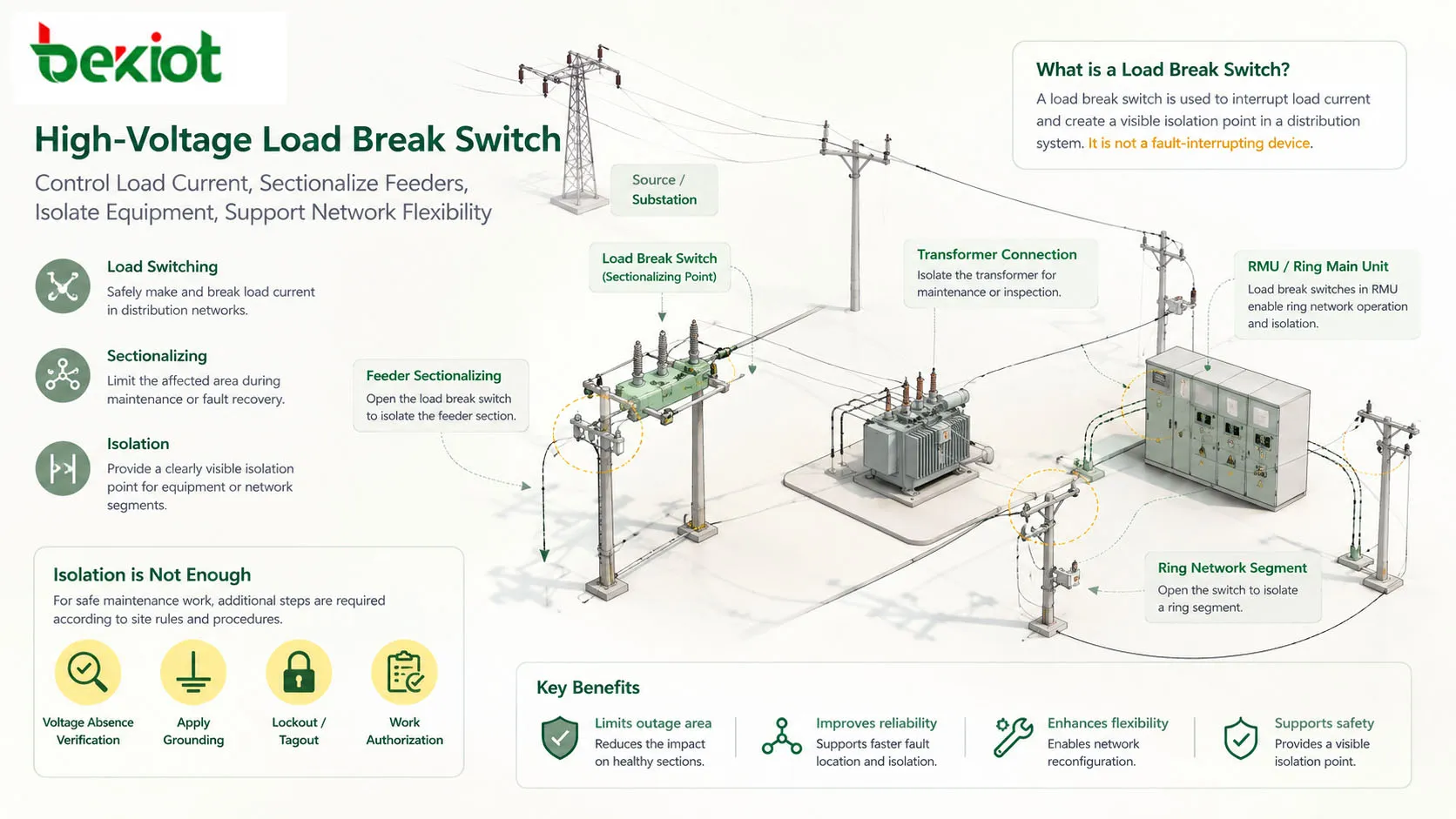

A high-voltage load break switch opens and closes electrical circuits while the circuit is carrying normal load current. It allows operators or control systems to energize, de-energize, isolate, sectionalize, or transfer parts of a distribution network under normal operating conditions.
In different regions and industries, the term “high voltage” may be used in different ways. Many load break switches in distribution applications are used above 1kV, especially in 6kV, 10kV, 11kV, 12kV, 24kV, 33kV, and 35kV systems. The correct voltage class, insulation level, current rating, and switching duty must be confirmed according to the project design and applicable standards.
The core function is to switch load current. This may include transformer load current, feeder load current, cable charging current, or distribution line load current within the rated capability of the device. Because opening a high-voltage circuit under load creates an arc, the switch must include a suitable arc-control structure.
Many load break switches are used to isolate a feeder section, transformer, cable branch, or ring network segment after load current has been interrupted. Sectionalizing helps limit the affected area during maintenance, operation changes, or fault recovery.
For maintenance, isolation alone is not enough. Qualified personnel must still follow the approved procedure for voltage absence verification, grounding, lockout, authorization, and work control.
The operating principle of a load break switch is based on fast contact movement and controlled arc interruption. When the switch opens under load, the moving and fixed contacts separate. Because current cannot stop instantly, an arc forms between the contacts for a short time.
The switch must stretch, cool, split, blow, or extinguish the arc so that current stops safely and insulation is restored. The exact arc-control method depends on the switch design. Common designs may use air, gas, vacuum interrupters, or other arc-extinguishing structures.
When the switch is closed, current flows through the main conductive path. During opening, the contacts separate quickly. If the arc is not controlled, it may damage contacts, insulation, and nearby equipment. It may also create serious safety risks. This is why the switch must have an interruption rating suitable for the expected load current and operating duty.
Arc extinction is the process of stopping the arc and restoring dielectric strength between the open contacts. Air-insulated designs may use arc chutes, arc horns, or interrupter chambers. Gas-insulated designs may use gas flow and insulation properties. Vacuum designs extinguish the arc inside a sealed vacuum interrupter.
Many load break switches use a spring or stored-energy mechanism. The operator charges the mechanism manually or electrically, and the mechanism releases energy to move the contacts quickly. This helps keep switching speed consistent and less dependent on manual operating force.
Some switchgear designs provide closed, open, and earthed positions. The closed position connects the circuit. The open position separates the circuit. The earthed position connects the isolated circuit side to ground through an earthing switch. Position indication and interlocks must be clear and reliable to prevent unsafe operations.

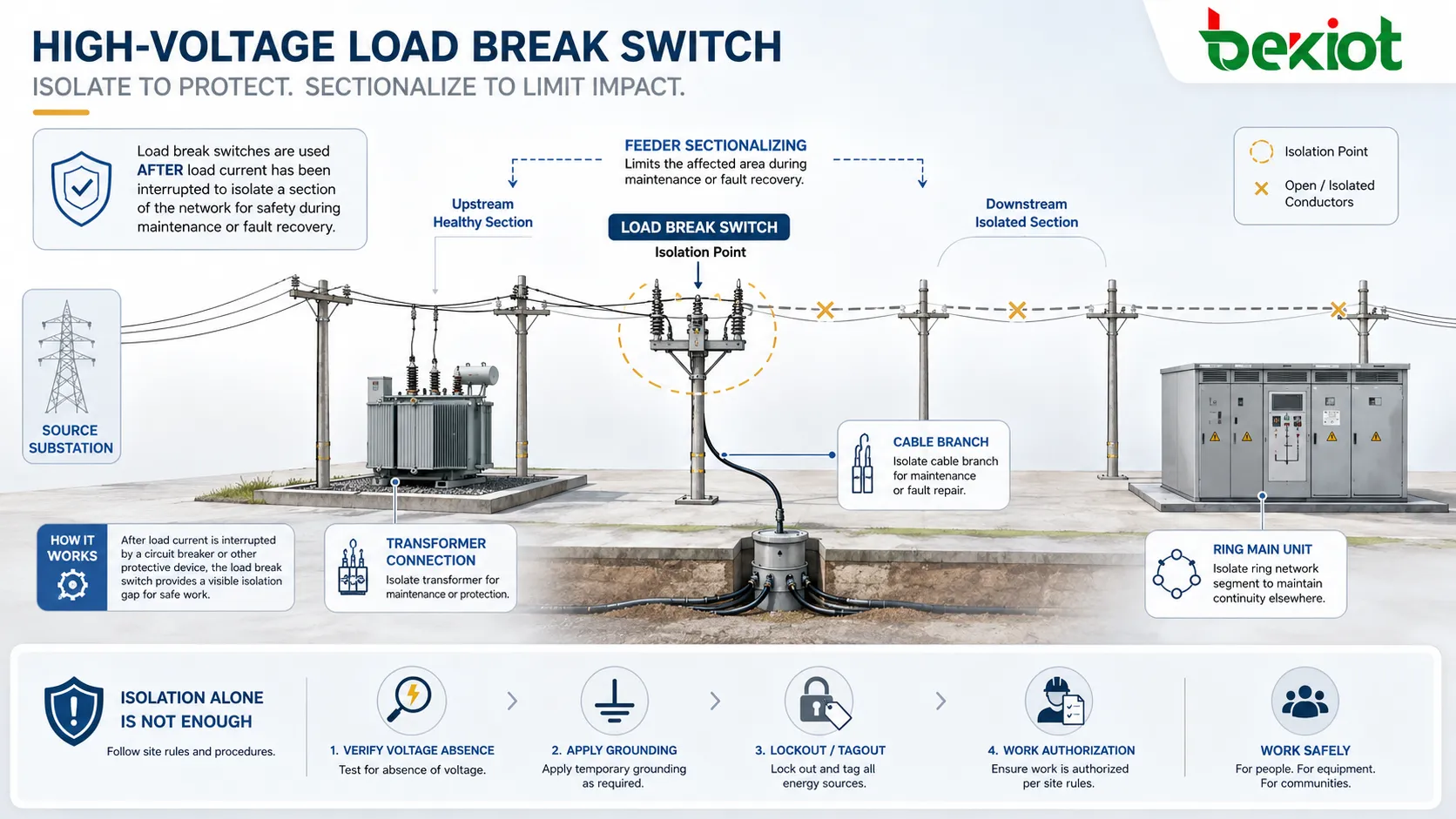

A high-voltage load break switch includes electrical, mechanical, insulation, and control components. The exact structure depends on whether the equipment is indoor, outdoor, air-insulated, gas-insulated, pole-mounted, metal-enclosed, or integrated into a ring main unit.
Main contacts carry normal operating current when the switch is closed. They must have low resistance, adequate thermal capacity, and enough mechanical strength. Contact wear, oxidation, poor alignment, or overheating can reduce reliability.
The arc interruption system controls the arc during opening. It may include arc runners, arc chutes, interrupter chambers, gas flow paths, vacuum bottles, or other arc-resistant structures. If this part is damaged or contaminated, the switch may not interrupt load current safely.
The insulation system separates live parts from grounded metal parts, phase-to-phase conductors, and accessible surfaces. It may use air clearance, solid insulation, gas insulation, porcelain, epoxy resin, or composite materials. Moisture, dust, pollution, aging, and mechanical damage can all affect insulation performance.
The operating mechanism converts manual or motorized action into contact movement. It may include handles, shafts, springs, latches, linkages, motors, auxiliary switches, and mechanical indicators. Any stiffness, abnormal sound, incomplete travel, or mismatched indication should be checked by qualified personnel.
Interlocks help prevent unsafe switching sequences. Position indicators show whether the switch is open, closed, or earthed. Auxiliary contacts may send status signals to monitoring systems, SCADA platforms, or remote control units.
Air-insulated load break switches use air as the main insulation medium. They are often simple, visible, and easier to inspect. They may be used in indoor switchgear, outdoor pole-mounted systems, and distribution equipment, depending on the design. They require adequate clearance and may be more affected by dust, humidity, salt, pollution, and outdoor exposure.
Gas-insulated load break switches are often used in compact ring main units and enclosed switchgear. The switching parts are placed inside a sealed tank filled with insulating gas or another insulation medium. This design saves space and improves protection against the external environment, but enclosure integrity and manufacturer-specific maintenance rules must be followed.
Vacuum load break switches use vacuum interrupters to extinguish the arc. Vacuum switching technology is widely used because it provides strong interruption performance and keeps the arc inside a sealed environment. Maintenance should follow the manufacturer’s requirements for interrupter condition, contact wear, and mechanical travel.
Some load break switch assemblies are combined with high-voltage fuses. The switch handles normal load switching, while the fuse provides short-circuit protection, often for distribution transformers. Correct fuse rating, striker operation, phase logic, and upstream protection coordination are important for safe use.
A load break switch and a circuit breaker both control electrical circuits, but they are designed for different duties. Confusing the two may lead to serious design and safety problems.
| Item | Load Break Switch | Circuit Breaker |
|---|---|---|
| Main role | Switches normal load current and isolates circuits | Interrupts normal current and fault current |
| Fault interruption | Usually not designed to interrupt high short-circuit current by itself | Designed and rated for fault current interruption |
| Protection function | Often used with fuses or upstream protection | Usually works with protection relays or trip units |
| Common use | Transformer feeders, ring networks, sectionalizing, load switching | Feeder protection, generator protection, main incomers, fault clearing |
| Cost and complexity | Often simpler and more economical for suitable duties | More complex because of fault interruption and protection requirements |
The difference matters because a load break switch should only be used within its rated switching capability. If fault current must be interrupted, the system should use a properly rated circuit breaker, fuse, recloser, or switch-fuse protection assembly.
Ring main units often use load break switches to control incoming and outgoing feeders in ring distribution networks. This supports feeder sectionalizing, supply path transfer, and service continuity. Compact RMU designs may integrate load break switches with earthing switches, fuses, cable compartments, voltage indicators, interlocks, and remote monitoring.
Load break switches are commonly used on transformer feeders. They allow the transformer to be disconnected from the high-voltage network under normal load conditions. When combined with fuses, they can also support transformer fault protection. Selection must consider transformer rating, inrush current, expected fault level, and protection coordination.
Outdoor pole-mounted load break switches may be used for overhead feeder sectionalizing, branch line control, and maintenance isolation. They help utilities isolate smaller network sections instead of disconnecting a larger area. Outdoor equipment must be suitable for weather, pollution, lightning exposure, mechanical strength, and local utility practice.
Industrial facilities use load break switches in substations, production feeders, transformer rooms, motor control areas, and power distribution cabinets. Site conditions such as dust, vibration, corrosion, frequent switching, high fault levels, and strict safety procedures should be considered during selection.
Solar farms, wind power plants, battery energy storage systems, rail systems, airports, tunnels, ports, and data centers may use load break switches in medium-voltage collection and distribution networks. These projects often require compact switchgear, remote operation, condition monitoring, and reliable maintenance procedures.
High-voltage switching is hazardous. Operating rules must be defined by qualified electrical personnel, approved instructions, equipment manuals, site risk assessment, and local regulations. The following content is a general safety overview and cannot replace formal authorization or site-specific procedures.
High-voltage load break switches should be operated, inspected, tested, and maintained only by trained and authorized personnel. Workers must understand the equipment type, system diagram, rated voltage, switching duty, interlocking logic, fault conditions, and emergency rules.
Switching operations should follow approved switching orders or operating tickets. These documents define the equipment identification, operation sequence, authorization, communication method, and confirmation steps. In complex systems, verbal assumptions should never replace verified procedures.
Before any operation, the equipment name, feeder number, panel label, switch position, circuit diagram, and operating target should be confirmed. If identification is unclear, the operation should stop until the issue is resolved by authorized personnel.
Personal protective equipment should match the arc flash and shock risk assessment. Depending on the site and task, this may include arc-rated clothing, face protection, insulating gloves, safety helmet, safety footwear, hearing protection, and insulated tools.
A site procedure should be developed from the actual equipment manual and electrical safety program. A general framework includes planning, authorization, isolation, verification, grounding, operation, monitoring, and documentation.
Before switching, the team should understand why the operation is needed, what equipment will be affected, whether load current is within the switch rating, whether backfeed may exist, and what hazards are present. Risk assessment should consider arc flash energy, shock boundary, grounding method, stored energy, outdoor weather, access restrictions, and possible impact on users or production.
When equipment must be worked on, isolation should remove all possible sources of hazardous energy. Lockout and tagging should be applied according to the approved energy-control procedure. Isolation should consider normal supply, alternate supply, generator sources, capacitor banks, transformers, auxiliary circuits, control power, and stored energy.
Before grounding or touching equipment expected to be de-energized, qualified personnel should verify absence of voltage with approved test equipment. Grounding or earthing should then be applied where required to protect workers from unexpected energization, induced voltage, stored charge, or backfeed.
Switching operations should be recorded. Records may include date, time, operator, equipment ID, switching order number, initial position, final position, abnormal findings, alarms, and confirmation results. Good records support traceability, incident investigation, and maintenance planning.
Arc flash can release intense heat, light, sound, and pressure. Arc blast may create mechanical force and flying debris. Risk control may include arc-resistant switchgear, remote operation, proper maintenance, interlocks, barriers, arc flash study, PPE, and strict switching procedures.
Electric shock can occur when a person contacts energized parts or enters an unsafe approach distance. Prevention requires barriers, insulation, restricted access, voltage verification, safe approach boundaries, grounding, proper tools, and trained personnel.
Backfeed may come from generators, transformers, capacitors, parallel feeders, renewable energy systems, UPS systems, or connected equipment. Procedures should identify all possible energy sources before work begins.
Switch mechanisms can fail because of wear, corrosion, poor lubrication, misalignment, damaged springs, or broken linkages. Abnormal operating force, incomplete movement, unusual noise, or inconsistent indication should be treated as a warning sign.
Maintenance helps keep load break switches reliable and safe. The maintenance schedule should follow manufacturer instructions, site conditions, switching frequency, environmental exposure, and utility or facility standards.
Visual inspection may include enclosure condition, labels, corrosion, contamination, moisture, damage, loose parts, position indicators, operating handles, earthing switch status, and cable compartment condition. Outdoor equipment may also need checks for seals, insulators, bird damage, vegetation, lightning damage, and pollution deposits.
Mechanical checks confirm that the operating mechanism moves correctly and that indicators match the actual switch position. Contact wear, interrupter condition, contact resistance, vacuum interrupter status, gas-insulated enclosure status, and insulation condition should be checked according to manufacturer-approved methods.
Insulation testing may include insulation resistance, power-frequency withstand, partial discharge assessment, or other methods depending on the maintenance program. Test voltage, connection method, discharge process, and safety boundaries must be controlled by qualified electrical testing personnel.
Choosing a high-voltage load break switch requires engineering evaluation. The device must match electrical ratings, environmental conditions, operating duty, installation method, protection coordination, and safety requirements.
| Selection Factor | Why It Matters | What to Check |
|---|---|---|
| Rated voltage | Must match system voltage and insulation level | Nominal voltage, withstand voltage, impulse level |
| Rated current | Must carry expected load without overheating | Continuous current, temperature rise, busbar rating |
| Breaking capacity | Must interrupt rated load current safely | Load current, cable charging current, transformer switching duty |
| Short-time withstand | Must tolerate fault current until protection clears | Short-time current, peak withstand current, protection coordination |
| Installation environment | Affects enclosure, insulation, and maintenance needs | Indoor, outdoor, pollution level, humidity, altitude, temperature |
| Operating method | Affects safety and automation design | Manual, motorized, remote control, SCADA interface, interlocks |
The switch must be rated for the actual system voltage, load current, frequency, insulation level, and switching duty. It should not be selected only by nominal voltage. Engineers should also review transformer energization, line charging, cable charging, loop switching, and expected service conditions.
Environmental suitability is also important. Outdoor equipment may need weatherproof enclosures, UV-resistant materials, corrosion protection, pollution-resistant insulation, and mechanical durability. Industrial sites may require additional protection against dust, chemicals, vibration, heat, humidity, or explosive atmospheres where applicable.
Modern distribution systems may also require motorized operation, remote status indication, auxiliary contacts, fault indicators, voltage sensors, current sensors, and SCADA integration. Remote control can improve safety by reducing direct exposure, but control logic, cybersecurity, interlocks, and communication reliability must be properly designed.
One common mistake is using a load break switch as if it were a circuit breaker. A standard load break switch should not be expected to interrupt high fault current unless it is part of a properly rated switch-fuse or protection assembly.
Another mistake is ignoring interlock status. Interlocks are safety features, not inconveniences. Bypassing them can create dangerous conditions such as closing onto earth or grounding an energized circuit.
A third mistake is relying only on panel indication before maintenance. Position indication is useful, but maintenance safety still requires proper isolation, voltage testing, grounding, authorization, and documentation.
A fourth mistake is neglecting environmental maintenance. Dust, moisture, corrosion, pollution, and vibration can reduce insulation performance and mechanical reliability over time.
A high-voltage load break switch is used to switch normal load current, isolate equipment, sectionalize feeders, and support flexible distribution network operation. It is valuable in ring main units, transformer feeders, overhead lines, industrial power systems, renewable energy projects, and infrastructure networks.
Its safe use depends on correct ratings, suitable arc interruption design, reliable indication, proper interlocks, protection coordination, qualified operation, and regular maintenance. Most importantly, it should not be confused with a circuit breaker. Load break switches are practical and economical for suitable switching duties, but fault interruption must be handled by properly rated protection devices.
A standard load break switch is generally intended for rated load current switching, not high short-circuit fault interruption. Fault interruption usually requires a circuit breaker, fuse, or switch-fuse combination designed for that duty.
An earthing switch provides a controlled connection to ground for an isolated circuit section. It helps protect workers from induced voltage, stored charge, or unexpected energization when applied according to approved safety procedures.
The operation should stop and the condition should be investigated by qualified personnel. Possible causes include linkage failure, incomplete travel, auxiliary contact mismatch, mechanical wear, or indicator damage.
Yes. Many modern units support motorized and remote operation. Remote control should include reliable status feedback, interlocks, communication security, local emergency control, and clear authorization.
Moisture, dust, salt, industrial pollution, temperature extremes, vibration, and corrosion can affect insulation, contacts, mechanisms, seals, and enclosures. Maintenance intervals should reflect real site conditions.
Important documents include single-line diagrams, switching orders, lockout/tagout procedures, equipment manuals, test records, protection settings, arc flash information where applicable, grounding procedures, and maintenance history.
