In factories, industrial parks, energy stations, logistics bases, campuses, and critical facilities, emergency events often happen suddenly and across scattered field locations. A person may press an emergency help terminal at a remote gate, speak through an IP access control intercom at an entrance, or report an abnormal condition from a fixed voice point. At the same time, security guards, maintenance teams, patrol staff, and field operators may still rely on two-way radios for daily work.

When these two systems are isolated, the response chain becomes longer than it should be. A fixed terminal call may first reach a management platform, then wait for an operator, then be manually relayed to a radio group, and only then reach field personnel. This process may work during normal operation, but it creates delay and uncertainty when an urgent event needs nearby responders to hear the message immediately.

A RoIP gateway solves this problem by linking IP-side voice systems with radio-side communication. It allows an emergency voice event from an IP access control intercom, entrance voice terminal, SOS help point, or dispatch platform to reach the correct two-way radio group more directly. The goal is not only to send a call to a screen. The goal is to make the people closest to the scene hear the event as early as possible.

Where field response often slows down

Many sites already have both fixed interactive terminals and two-way radio systems. IP access control terminals are used for entry requests, visitor communication, identity confirmation, and abnormal access reporting. Emergency help terminals are used for distress calls, incident reporting, and fixed-point assistance. Two-way radios are used by mobile teams during patrol, maintenance, logistics, security, and emergency handling.

The problem appears when these systems cannot talk to each other. A fixed terminal can create an urgent voice request, but the people who can respond nearby may not hear it directly. The message may stay inside a control room or management platform until someone manually transfers it to the correct radio group.

In a fast-moving event, this gap matters. A gate incident, equipment room alarm, perimeter intrusion, warehouse accident, or remote help request may require immediate on-site action. If the voice event can enter the field radio network automatically, nearby personnel can understand the situation and move earlier.

RoIP changes a fixed-point call into a field response event

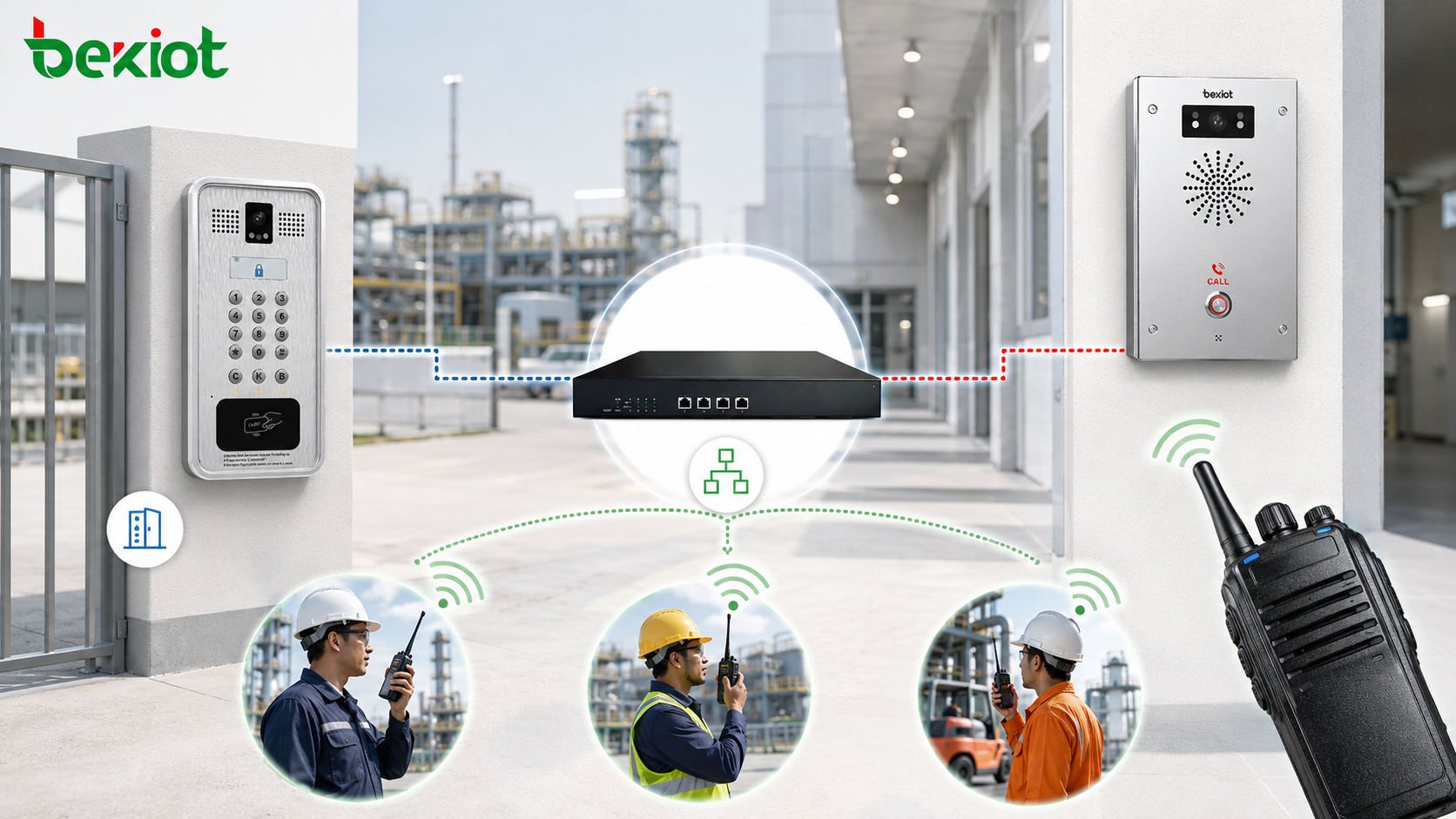

A RoIP gateway works as the voice linkage layer between IP-based terminals and two-way radio systems. It can receive voice from IP intercoms, emergency terminals, SIP platforms, or dispatch systems, then route or convert that audio to the radio communication side. The radio group receives the event as a group call, broadcast notification, or push-to-talk communication event, depending on the project design.

This changes the role of the fixed terminal. It is no longer only a device that calls a platform. It becomes a trigger point for a wider field response workflow. When someone presses a help button, speaks through an entrance intercom, or reports an abnormal situation from a fixed point, the voice can be delivered to the responsible radio users.

For security and maintenance teams, this is more practical than relying only on platform pop-ups or manual relay. The people who are already moving around the site with handheld radios can hear the message in their normal working tool and respond without waiting for a second communication step.

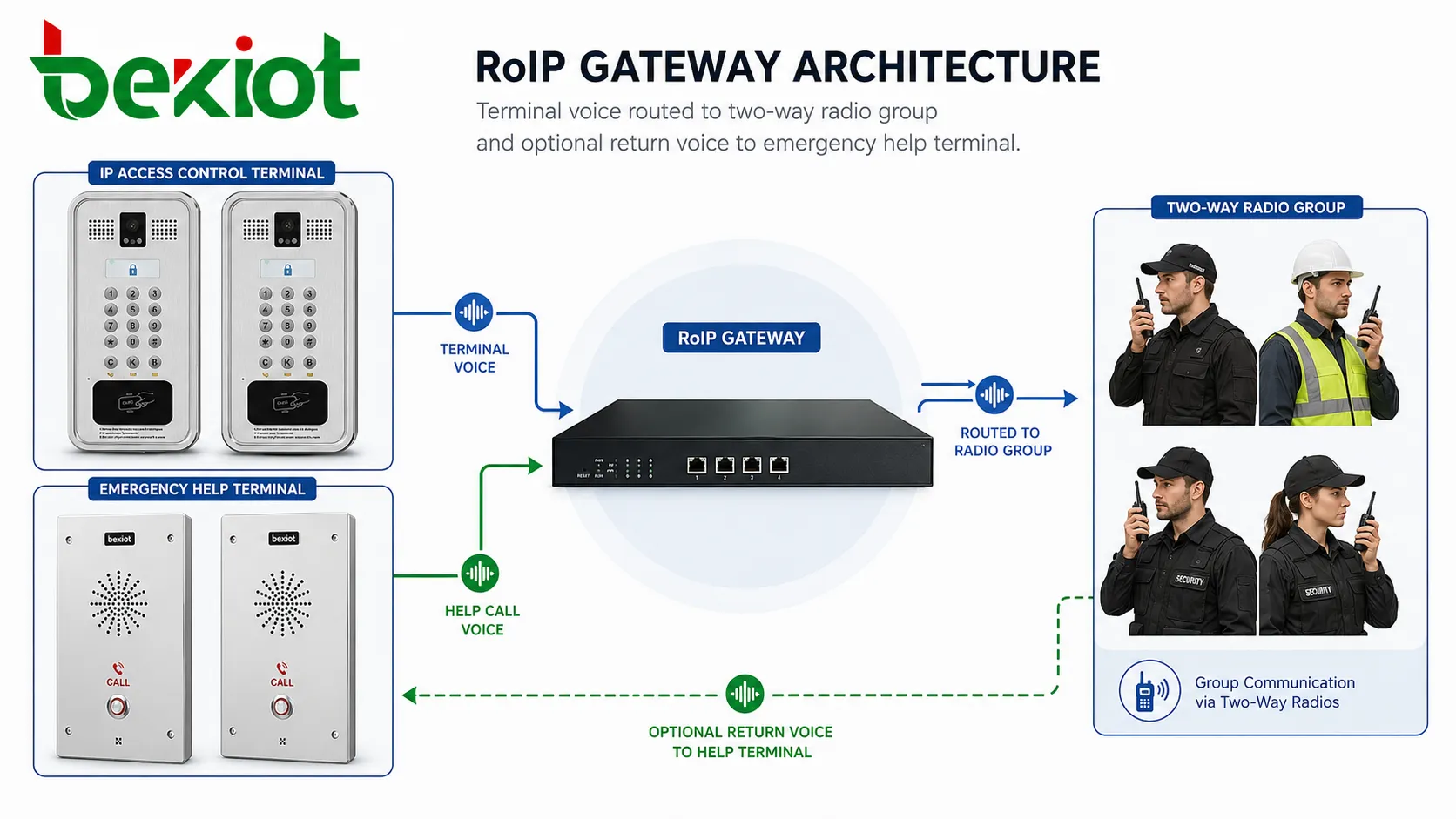

How the linkage architecture is built

A typical RoIP integration architecture includes three layers: the interactive terminal layer, the RoIP gateway layer, and the radio communication layer. The terminal layer may include IP access control intercoms, emergency help points, SOS terminals, entrance voice panels, guard station terminals, and other fixed communication devices.

The RoIP gateway sits between the IP-side system and the two-way radio system. It maps terminal voice sessions, event sources, and linkage rules to the correct radio groups. The radio communication layer then delivers the voice to handheld radios used by security guards, maintenance teams, patrol staff, field operators, or emergency responders.

A basic linkage path is one-way: the terminal sends voice to the RoIP gateway, and the gateway pushes the audio to a designated radio group. In some projects, two-way voice can also be configured. Radio users can speak back through the radio network, and their voice can be sent to the terminal side for reassurance, verification, or instruction.

From trigger to response

The workflow usually begins when someone uses a fixed interactive terminal. This may happen at a factory entrance, equipment room, warehouse gate, logistics area, remote patrol point, restricted zone, campus help point, parking area, or low-traffic location.

After the event is triggered, the terminal voice enters the RoIP gateway or the connected communication platform. The gateway identifies the source, applies the configured linkage rule, and sends the voice to the corresponding radio group. The rule can be based on location, terminal type, duty schedule, department, or response priority.

The designated radio group receives the voice in real time. Nearby security or maintenance personnel can hear the event directly on their handheld radios and move toward the location. If return voice is enabled, field personnel can speak back to the terminal side to confirm that someone is responding, ask for more details, or give immediate safety instructions.

Benefits for security, maintenance, and operations teams

The first benefit is a shorter response chain. The event no longer has to move from terminal to platform, platform to operator, operator to radio, and radio to field staff. With RoIP linkage, the voice event can enter the field radio network directly through the gateway.

The second benefit is that existing work habits can be preserved. Field personnel can continue using handheld radios. Fixed terminals can continue serving entrances, help points, equipment rooms, and restricted areas. The gateway completes the interconnection in the middle, reducing training pressure and avoiding unnecessary system replacement.

The third benefit is flexible routing. Different terminals can be linked to different radio groups. An entrance intercom may notify the security group, while an equipment room help point may call the maintenance group. A perimeter help terminal may reach the patrol group, while a high-priority emergency point may notify several groups and the command center at the same time.

The fourth benefit is stronger response certainty. A platform message can be missed when operators are busy, but a radio group voice notification is easier for mobile teams to notice during patrol and field work. In emergency communication, “someone has called” should quickly become “the right people have heard it.”

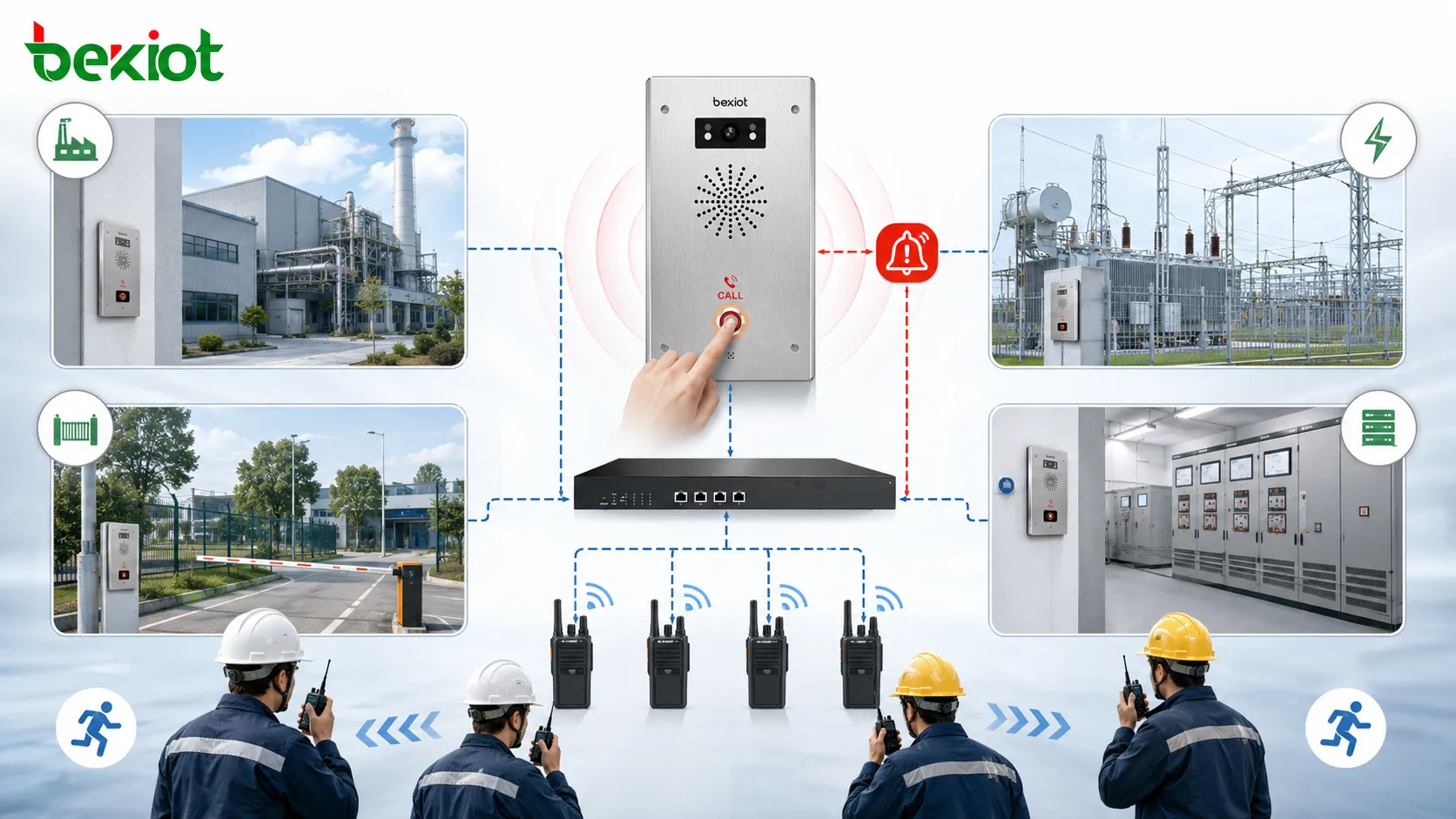

Typical use cases

At factory entrances, a visitor, contractor, or worker may trigger an abnormal access request through an IP access control terminal. By linking the terminal voice to the security radio group, guards can receive the request immediately and go to the entrance without waiting for a control room relay.

In industrial parks, emergency help terminals may be installed in parking areas, warehouses, remote corridors, perimeter zones, and night-shift locations. During periods with fewer staff on duty, direct linkage to radio users reduces the risk that a help request remains unnoticed on a platform screen.

In energy stations, substations, equipment rooms, and high-security facilities, fixed terminals can be connected to operation or maintenance radio groups. If a fault, access issue, personal safety event, or abnormal situation occurs, the responsible team can receive voice information quickly and respond with clearer context.

In emergency response scenarios, the same architecture can connect fixed terminals, radio users, a dispatch center, and on-site response teams. Voice becomes part of a faster operational chain instead of a message waiting for manual transfer.

Design points for reliable deployment

A successful deployment should begin with point mapping. Each IP intercom, emergency terminal, entrance panel, or help point should be associated with a physical location, responsible team, and response priority. Clear naming helps operators and field personnel understand where the event comes from and who should handle it.

Group strategy is equally important. Not every terminal should call the same radio group. A gate terminal, emergency help point, equipment room terminal, and restricted-area intercom may need different linkage rules. These rules can be configured by point, zone, department, time period, event type, or priority level.

Audio reliability should be checked carefully. Emergency voice must be clear enough for field personnel to understand the location, situation, and required action. Network quality, codec settings, radio interface wiring, gateway configuration, radio channel planning, and device stability all influence the final communication experience.

Permission and control should also be planned. Some terminals may only trigger one-way notification, while others may allow two-way voice. Some events may call one radio group, while higher-priority events may reach multiple radio groups and a command platform at the same time.

A practical upgrade path for existing sites

One advantage of RoIP-based linkage is that it does not usually require a full replacement of existing systems. Many factories, campuses, parks, energy sites, and logistics bases already have IP access control terminals, emergency call points, and two-way radios. The missing layer is often the voice bridge between fixed terminal events and mobile radio users.

By adding a RoIP gateway, these systems can be connected into a more responsive emergency communication workflow. The fixed terminal keeps its location-based interaction role. The radio system continues to serve mobile field teams. The gateway makes urgent voice events move between them more directly.

For projects that need lightweight integration between fixed terminals, radio systems, dispatch platforms, and emergency communication workflows, Becke Telcom / 贝克通信 can be considered as a practical solution reference. The BK-4-Channel RoIP Gateway may be used in suitable projects where radio voice needs to interconnect with IP-based communication systems, access control intercoms, help terminals, or dispatch platforms.

The goal is not only to send a call to a platform. The goal is to make an urgent voice event reach the people who can respond on site.

Summary

RoIP gateway integration helps fixed IP access control intercoms, emergency help terminals, entrance voice panels, and radio groups work as one emergency communication workflow. Instead of leaving urgent voice requests inside a platform or control room, the gateway can push the event to the radio users who are closest to the scene.

For factories, industrial parks, logistics bases, energy stations, campuses, equipment rooms, and critical facilities, this design improves response speed without forcing every existing system to be replaced. With proper point mapping, group routing, audio testing, and permission control, RoIP linkage can make fixed-point voice events more visible, more audible, and more actionable for field teams.

FAQ

Can a RoIP gateway connect every type of interactive terminal?

It depends on the terminal interface, voice protocol, platform architecture, and integration method. Before deployment, the project team should confirm whether the terminal supports SIP, IP audio, relay triggering, platform forwarding, or another compatible access method.

Does this solution require replacing existing handheld radios?

In many cases, no. Existing handheld radios can continue to be used if the radio interface and system configuration support integration. The RoIP gateway is added as an interconnection layer between IP-side voice systems and radio-side communication.

Can different help points call different radio groups?

Yes. A practical deployment should support flexible linkage rules. Terminals can be mapped to different radio groups according to area, department, duty schedule, incident type, or response priority.

Is two-way voice always required?

Not always. Some scenarios only need one-way emergency notification from the terminal to the radio group. Other scenarios need radio users to speak back to the terminal for reassurance, verification, or instruction.

What should be checked before using this architecture?

The project team should check terminal protocols, radio interfaces, group communication rules, audio quality, network reliability, emergency workflow, permission control, and whether the command platform also needs to receive the event at the same time.
