Two-way radios are still widely used in security operations, emergency response, industrial sites, transportation, ports, construction, utilities and large event coordination. They are simple to operate, fast to respond and familiar to field teams. A user presses the push-to-talk button, speaks to the group and releases the button so others can reply.

Conference rooms and professional audio systems work differently. Microphones, mixers, speakers, amplifiers and audio processors are usually designed for continuous audio, full-duplex discussion or open sound reinforcement. When a project needs to connect handheld radios or vehicle radios with a conference mixer, the challenge is not just how to pass sound from one device to another. The real design work is how to manage PTT control, audio direction, SIP conversion, delay, grounding and system isolation.

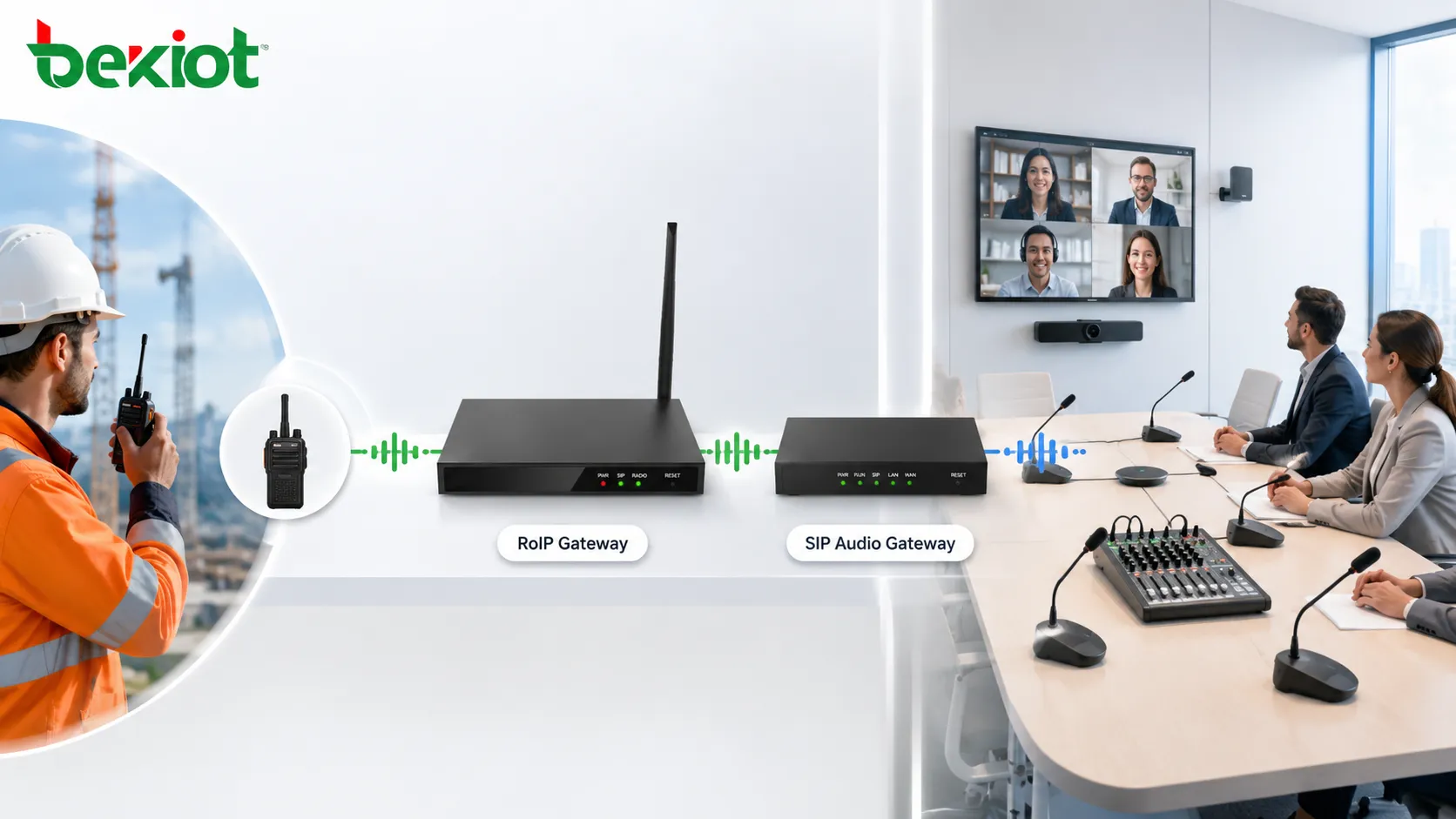

A practical solution is to use a RoIP gateway on the radio side and a SIP audio gateway on the conference side. This architecture allows radio users and meeting room participants to communicate without forcing either side to change its normal operating habit.

Why a Simple Audio Cable Is Not Enough

At first glance, this integration may look like a wiring task. A two-way radio has audio input and output, and a conference mixer also has audio input and output. It may seem possible to make one custom cable and connect the two systems directly.

In real projects, this idea usually solves only part of the problem. Sending radio receive audio into the mixer is relatively manageable if the interface, level and cable are correct. The difficult part appears when the meeting room needs to speak back to the radio channel.

Radio transmission depends on PTT control

A radio does not normally transmit just because audio is present. Before any sound can be sent to the radio group, the radio must enter transmit mode. In a handheld or vehicle radio, this is done by pressing a PTT button or activating a control line.

A standard conference mixer outputs audio, but it does not know when to press the radio’s transmit key. Without proper PTT handling, the meeting room audio may never reach the radio group, or the system may behave unpredictably. Background noise may trigger unwanted transmission, the first words may be cut off, or the radio channel may stay occupied longer than needed.

Radio-to-conference integration is not only an audio wiring problem. It must also solve talk control, audio conversion, SIP networking, isolation and real deployment conditions.

A Gateway-Based Architecture That Works in Practice

RoIP gateway on the radio side

A RoIP gateway acts as the bridge between radio communication and IP-based voice systems. On the radio side, it can connect to handheld radios, vehicle radios, base stations, repeaters or other radio equipment through a suitable audio and control interface.

The gateway handles radio audio input, radio audio output and PTT control. In many projects, the cable must be customized because different radio brands and models use different accessory connectors, pin definitions, signal levels and headset detection methods.

SIP audio gateway on the conference side

In the meeting room, a SIP audio gateway connects the conference mixer with the IP voice network. It may use balanced audio interfaces such as XLR input and output, depending on the mixer and system design. The mixer continues to manage microphones, speakers, amplifiers, echo control and room audio processing.

The audio gateway is responsible for SIP signaling, VoIP transmission and interconnection with the radio-side RoIP gateway, IP-PBX, dispatch platform or command communication system. This keeps the conference audio system and radio system logically connected but technically manageable.

Why separate gateways are often better

Some projects try to place all devices in the same cabinet or meeting room. This is not always ideal. Radio equipment may introduce electromagnetic interference, especially near sensitive audio devices, microphones and processors. Keeping the radio-side equipment away from the mixer can help reduce noise and instability.

Radio signal coverage is another reason for separation. A conference room may be deep inside a building, surrounded by concrete walls, metal structures or electronic equipment. That may not be the best place for a radio antenna. A separated architecture allows the RoIP gateway and connected radio to be installed near a window, roof, equipment room, control room or remote radio point, while the SIP audio gateway stays near the mixer.

How Audio Moves Between Radio Users and the Meeting Room

From radio users to conference participants

When a radio user presses PTT and speaks, the radio receive audio is sent into the RoIP gateway. The gateway converts the radio audio into IP voice, usually through SIP or VoIP transmission. The audio then reaches the SIP audio gateway, IP-PBX, dispatch platform or other voice system.

From there, the sound is fed into the conference mixer and played through the meeting room speakers. Meeting participants can hear field radio users through the existing room audio system, instead of using a separate radio placed on the table.

From the meeting room back to the radio channel

When someone in the conference room speaks, the mixer sends the selected audio to the SIP audio gateway. The gateway converts the room audio into IP voice and sends it to the RoIP gateway. The RoIP gateway then activates the radio-side PTT control and transmits the audio through the connected radio channel.

This step is the key difference between a simple cable connection and a real system integration. The gateway must not only pass audio, but also seize and release the radio talk channel at the right time. When conference speech stops, the gateway releases PTT so field radio users can reply.

Direct connection or platform-based routing

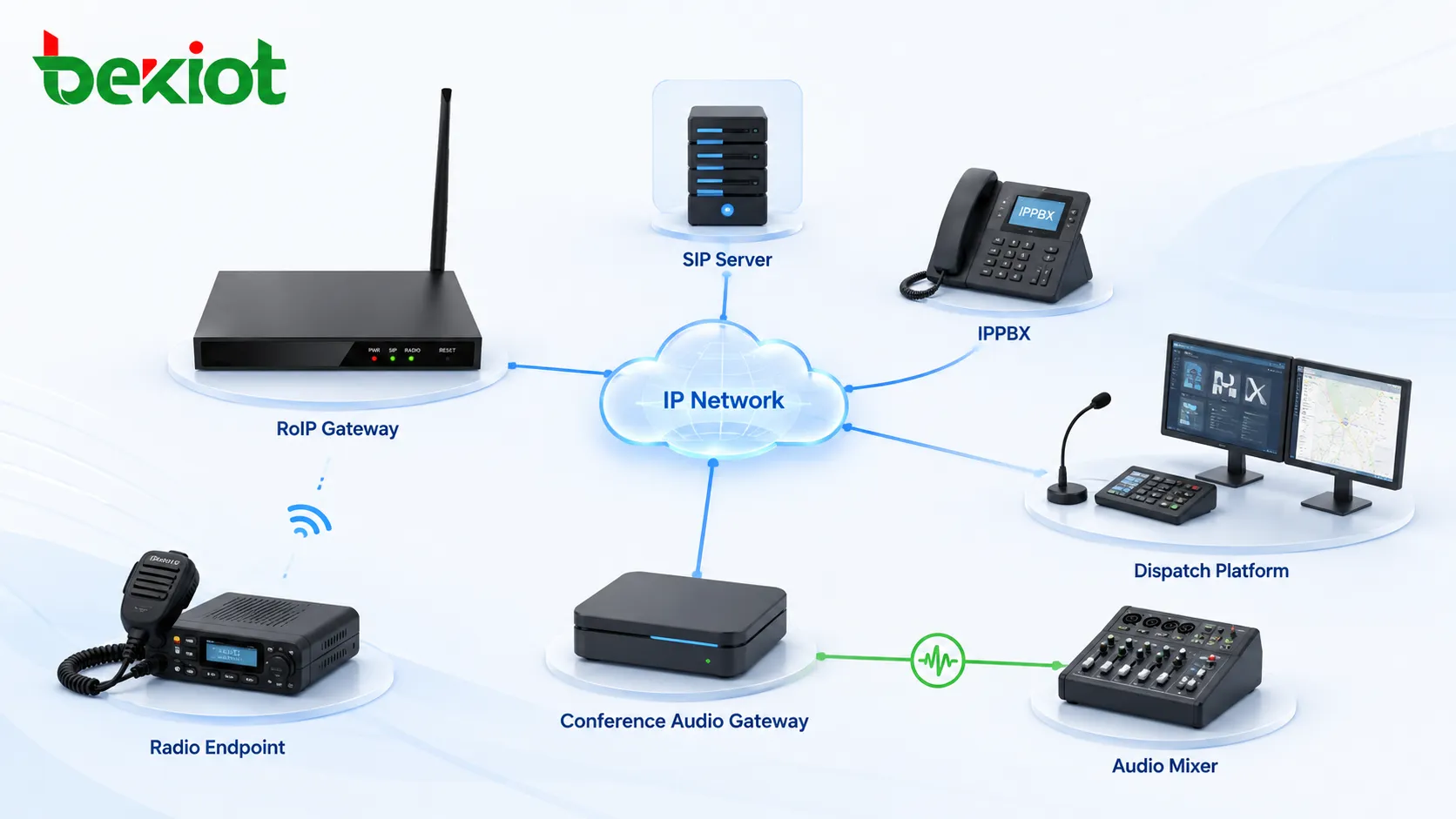

The two gateways can be connected directly over an IP network for simple point-to-point use. They can also register to a SIP server, IP-PBX, dispatch platform or command communication system. Direct networking is suitable for smaller projects, while platform-based routing is better for systems that need recording, monitoring, call control, multi-site routing, conferencing or operator management.

Compatible Radio and Communication Environments

Handheld radios and vehicle radios

A well-designed RoIP integration can support handheld radios, vehicle radios, base radios and repeaters. The exact connection method depends on the radio accessory interface, microphone path, speaker path, PTT control line, electrical level and cable definition.

Custom wiring is common because radios do not share one universal accessory standard. Some radios also detect whether a headset or speaker microphone is inserted. If this detection behavior is not considered, the radio may not send or receive audio correctly through the gateway cable.

Analog, digital and specialized radio systems

This architecture can be applied to many radio environments, including analog radios, DMR, PDT, TETRA, VHF aviation radios, maritime radios and shortwave radio systems. The purpose is to convert radio-side audio and control behavior into a voice path that IP communication systems can handle.

Because different radio systems have different operating characteristics, testing is necessary. Audio level, impedance, transmit delay, release timing, noise environment and PTT behavior should be checked before formal deployment.

Connection with video conferencing systems

In some projects, the same gateway architecture can be connected with a video conferencing system. The meeting room may already use microphones, cameras, speakers and video conference equipment for remote collaboration, while field teams continue using radios. Gateway integration allows radio audio to become part of the meeting workflow without replacing the existing conference platform.

Important Design Points

Audio level and interface matching

Conference mixers and radios usually use different audio standards. Professional mixers may use balanced audio interfaces, while radios often use accessory ports designed for speaker microphones, headsets or vehicle kits. If the level is wrong, the result may be low volume, distortion, noise, echo or unstable transmission.

The project should confirm input and output levels, connector type, impedance, grounding, cable shielding and whether electrical isolation is required. For professional meeting rooms and long cable runs, balanced audio and proper shielding are strongly recommended.

PTT timing and talk control

PTT timing directly affects user experience. If transmission starts too late, the first syllable of the speaker may be lost. If PTT releases too slowly, radio users may not be able to reply quickly. If the trigger threshold is too sensitive, room background noise may accidentally open the radio channel.

Gateway configuration should consider transmit delay, release delay, voice detection threshold, manual PTT trigger, priority rules and emergency override requirements. These details make the system feel more natural in real meetings, command rooms and event operations.

Radio placement and coverage

Radio signal quality depends heavily on location. A meeting room may not be suitable for radio reception, especially if it is inside a large building or surrounded by metal structures. A separated gateway design allows the radio unit and antenna to be placed where coverage is better, while the conference audio gateway remains near the mixer.

Where This Integration Is Useful

Emergency command rooms

Emergency command rooms often need to communicate with field responders, radio users, government departments and remote experts at the same time. By connecting radios to the conference audio system, commanders can hear field radio traffic and speak back to the radio group when required.

Large venues and event operations

Exhibition centers, stadiums, hotels, conference halls and public event venues often use both professional meeting audio and two-way radios. Gateway integration helps event managers, security teams, technical staff and control rooms coordinate through a shared voice environment.

Industrial and transportation control rooms

Factories, mines, ports, railways, airports, highways and utility facilities often use radios for field operations while control rooms use IP telephony, dispatch consoles, conference systems and recording platforms. A gateway-based architecture connects these systems without forcing every team to change its communication device.

Deployment Checklist

Commissioning Should Use Real Operating Conditions

Testing should not be limited to whether the devices power on or register to the network. The project team should test the actual communication path from radio to room and from room to radio. Microphone pickup, speaker volume, echo, background noise, PTT triggering, release timing and radio audio clarity should all be checked.

It is also important to test first-syllable loss, accidental noise triggering, radio coverage, network delay, recording behavior and emergency fallback procedures. A system that sounds acceptable in a quiet test may behave differently during a live event, emergency drill or busy control-room operation.

Final Notes

Connecting two-way radios to a conference mixer is not a simple audio cable task. Radios are built around half-duplex push-to-talk communication, while conference rooms and audio mixers are usually designed for continuous room audio. To make both sides communicate reliably, the system must handle audio conversion, PTT control, SIP networking, interface matching and physical deployment.

A RoIP gateway for the radio side and a SIP audio gateway for the conference side provide a practical and flexible architecture. The system can work through direct IP networking, SIP servers, IP-PBX systems, dispatch platforms or video conferencing systems.

With correct planning, radio users and meeting room participants can share one voice workflow while keeping their familiar communication methods. This is useful for emergency command rooms, event venues, industrial control rooms, transportation dispatch centers and multi-site coordination projects.

FAQ

Can a conference mixer trigger radio PTT directly?

Most standard mixers cannot trigger radio PTT directly. They can send audio, but they usually do not provide the control signal required to seize the radio transmit channel. A gateway or control interface is normally needed.

Is balanced audio required for every project?

Not always. However, balanced audio is recommended for professional meeting rooms, long cable runs and environments with possible electrical noise because it helps reduce interference and signal loss.

Can multiple radio channels be connected to one conference system?

Yes, but the design should define channel routing, gateway quantity, talk priority and whether each radio channel needs independent control. Larger systems may require multiple RoIP gateways or a dispatch platform.

Will the meeting room hear all radio traffic?

That depends on routing and configuration. The system can send all radio traffic to the room, only selected channels or only calls controlled through a SIP or dispatch platform.

What should be tested before live use?

The project should test PTT timing, first-syllable loss, echo, audio level, noise triggering, radio coverage, network delay, SIP registration, recording behavior and emergency fallback procedures.
