Video phones are now widely used in ICT, security, dispatch, and visual communication projects. They can support point-to-point video calls, video meetings, remote visual communication, and in many integration scenarios, they are also expected to open surveillance video, access camera resources, or work together with video gateways and command platforms.

Most video phones use a desktop design with a built-in or external camera, a display screen, and an intelligent operating system. Compared with ordinary voice phones, they can handle more visual tasks. In real projects, users may expect one terminal to support video calling, video conferencing, monitoring preview, intercom linkage, and emergency visual communication.

The problem is that video phones do not always play video smoothly. Common symptoms include black screen, long loading time, delayed playback, freezing, slow operation, or failure to open surveillance video. These issues are especially common when the video phone is not calling another compatible video phone, but trying to open a stream from an IP camera, NVR, VMS platform, video gateway, or surveillance management system.

Start with the real playback scenario

The first step is to understand what the video phone is actually trying to play. A SIP video call between two compatible video phones is not the same as opening a surveillance stream from a camera or video platform.

In a normal SIP video call, both sides may negotiate video resolution, frame rate, bitrate, and codec before the session is established. If both terminals support the same media parameters, the call can usually proceed without major problems.

Monitoring preview works differently. When a video phone opens a camera stream, the source video may already have fixed parameters. The phone may not be able to negotiate a lower resolution, a different codec, or a smaller bitrate. If the stream exceeds the phone’s decoding capability, playback may fail even when the account, network, and platform connection appear normal.

Video phones are not professional decoding servers

A desktop video phone has limited processing capability. Its screen size, CPU performance, memory, operating system, and hardware decoder are all designed around its product role. It is made for communication first, not for replacing an NVR client, a video wall decoder, or a professional media server.

A stream that plays smoothly on a PC client or surveillance workstation may not play well on a video phone. This is why troubleshooting should not focus only on SIP registration or network connectivity. The media format itself must be checked.

In many integration projects, the video phone is not broken. The stream is simply too heavy, too high-resolution, or encoded in a format the terminal cannot decode properly.

Resolution is the first parameter to check

Many video phones support a maximum video resolution of 1080P, and some models only support 720P. Since the display size of a desktop video phone is limited, ultra-high-resolution video does not always bring visible benefit on the terminal screen.

If the video source exceeds the maximum resolution supported by the video phone, the terminal may fail to decode the stream. In practical projects, this may appear as a black screen, repeated loading, no image output, or unstable playback.

For example, if a camera outputs 4K video and the video phone only supports 1080P decoding, the issue may not be caused by the SIP account, firewall, server address, or platform permission. The stream needs to be reduced to a compatible resolution before it reaches the terminal.

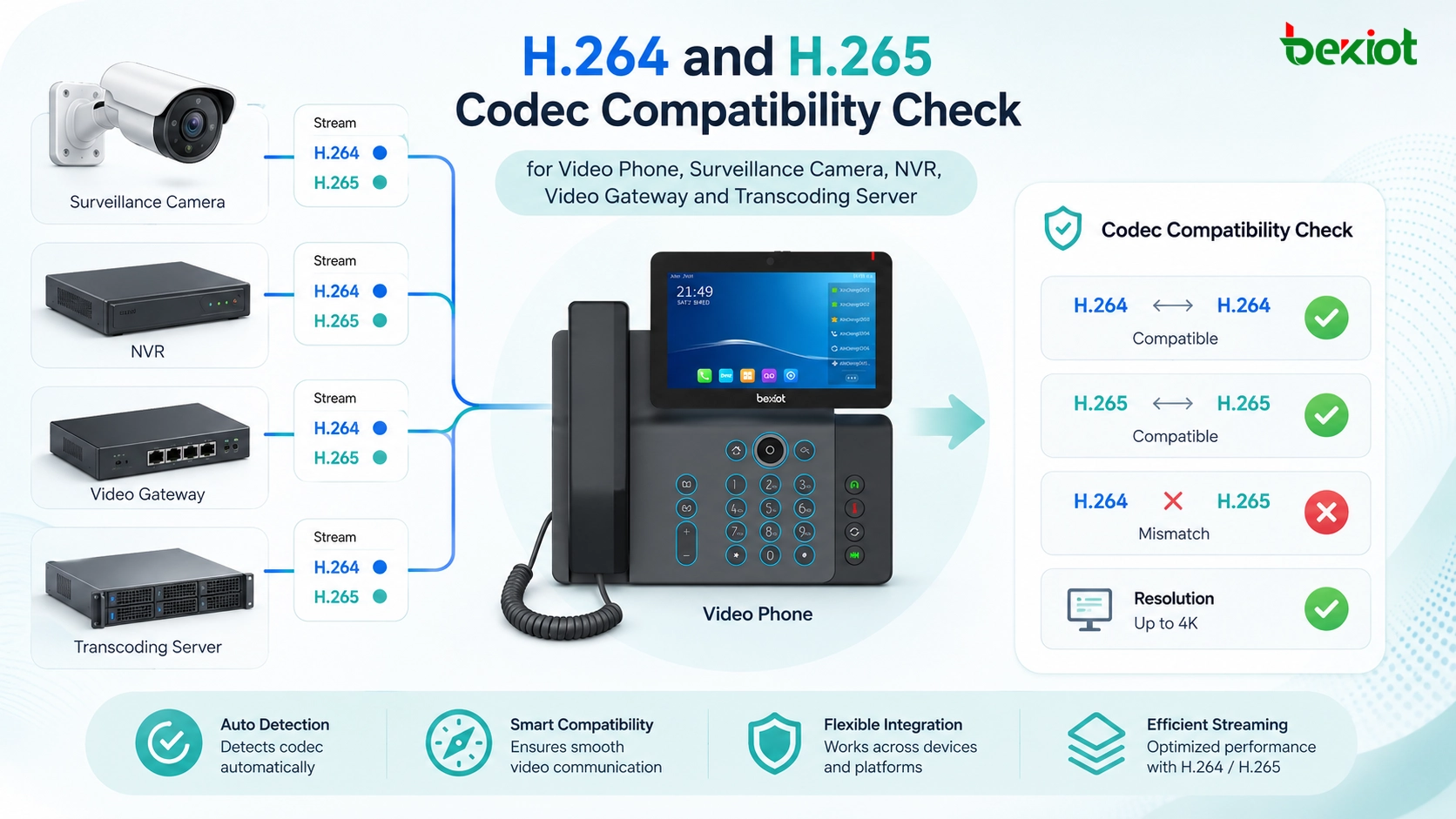

Codec mismatch often causes black screen

Video codec compatibility is one of the most common causes of video phone playback failure. Many surveillance systems, NVRs, and IP cameras now use H.265 because it can reduce bandwidth and storage requirements compared with H.264 under similar image quality.

However, H.265 decoding requires stronger hardware capability. Some video phones, especially older models or cost-sensitive terminals, may only support H.264 video decoding. When such a terminal tries to open an H.265 surveillance stream, it may show a black screen even if the stream address and network route are correct.

During troubleshooting, the project team should confirm two things: whether the video phone supports H.265, and whether the camera or video platform is outputting H.265. If the codec does not match, the stream must be changed at the source or converted through a video gateway or transcoding server.

Bitrate mismatch leads to freezing and delay

Bitrate is another factor that is often ignored. If the video stream bitrate is too high, the video phone may become slow, delayed, or unstable. Users may see freezing, delayed control, long response time, or even device crash in severe cases.

In many video phone projects, the terminal-side video bitrate is usually controlled at a relatively moderate level. Many surveillance streams, however, can reach 4–6 Mbps or higher depending on resolution, frame rate, codec, scene complexity, and camera configuration.

When a high-bitrate surveillance stream is directly sent to a video phone designed for lower-bitrate communication, the terminal may not process the media data smoothly. This explains why some devices can register normally, make voice calls normally, and even start video playback, but still suffer from serious lag or unstable image display.

Do not blame the network too early

When video cannot be displayed, many teams first suspect packet loss, routing, NAT, VLAN, firewall, or bandwidth problems. Network quality is important, but not every playback failure is a network fault.

If the video phone can register, make calls, reach the platform, and receive stream requests, the next step should be to check media parameters. Resolution, codec, frame rate, and bitrate are often more directly related to black screen, freezing, and decoding failure.

Network capacity still matters, especially when multiple video phones, cameras, and streams are used at the same time. A single test stream may play normally, while several simultaneous streams may overload the local network, wireless connection, or uplink bandwidth. For acceptance testing, realistic concurrent usage should be tested instead of only one video channel.

Transcoding is often the practical solution

In small projects, playback issues may be solved by changing camera settings. The integrator can reduce resolution, switch H.265 to H.264, lower the bitrate, reduce frame rate, or create a sub-stream for video phone access.

In larger projects, this is not always possible. Existing surveillance systems may already use fixed recording strategies, storage plans, AI analysis rules, customer-defined image quality requirements, or platform compatibility settings. Changing every camera may affect other business systems.

A video transcoding server or video gateway provides a more flexible approach. It can convert video before it reaches the video phone. Oversized streams, unsupported codecs, high-bitrate video, and incompatible formats can be changed into a terminal-friendly output.

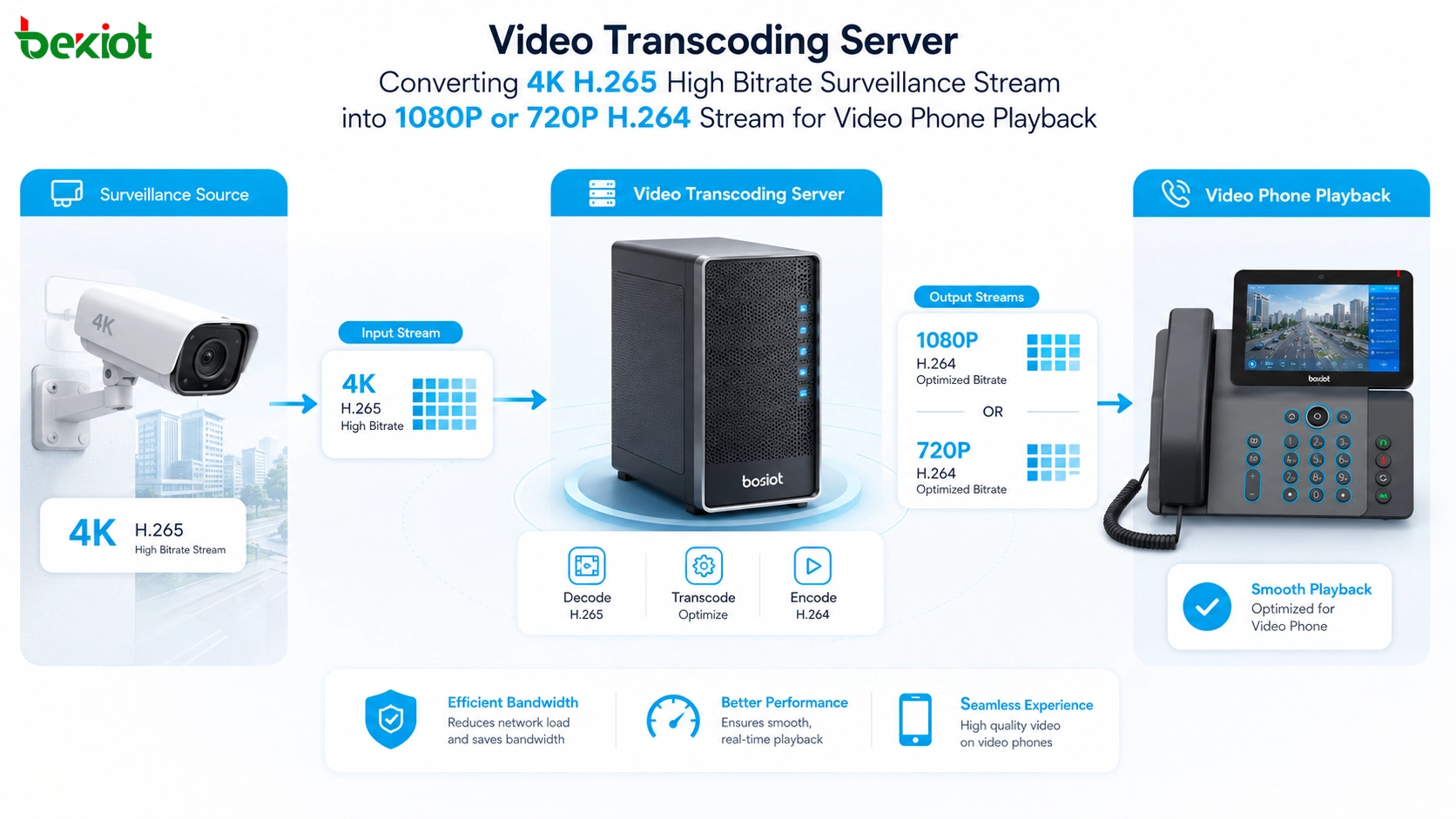

For example, a 4K H.265 high-bitrate stream can be converted into a 1080P or 720P H.264 stream with a lower bitrate. The original stream can still be used by the surveillance platform for recording or high-definition monitoring, while the converted stream is used by the video phone or dispatch terminal.

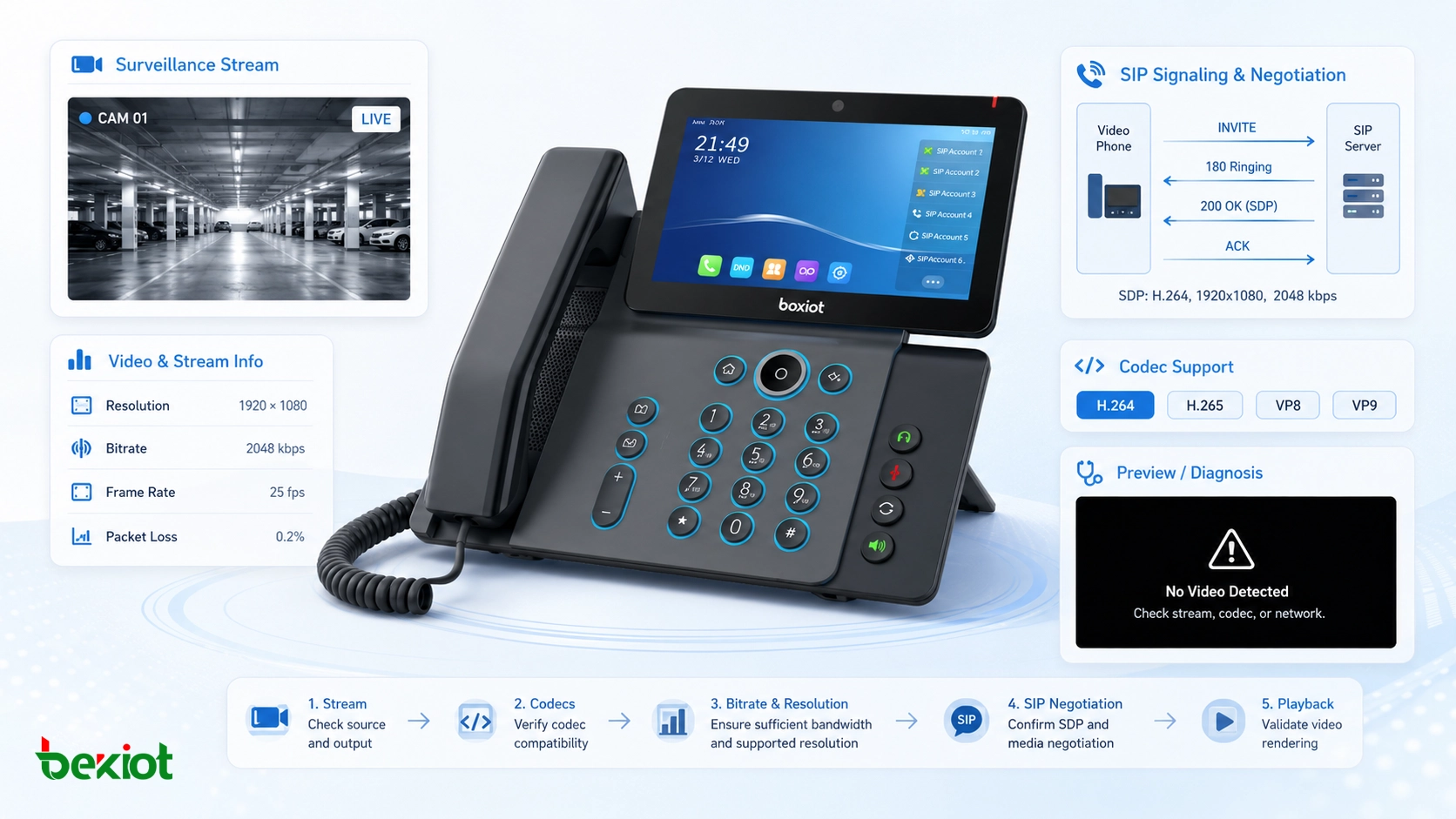

A practical troubleshooting workflow

The first step is to review the video phone specification. The project team should confirm the maximum supported resolution, supported codecs, recommended bitrate, frame rate range, SIP video capability, and whether the model supports the required stream format.

The second step is to inspect the actual video source. Confirm whether the stream comes from an IP camera, NVR, VMS platform, video gateway, media server, or third-party system. Then check its resolution, codec, bitrate, frame rate, transport method, and whether a sub-stream is available.

The third step is to test with a known standard stream. A 720P or 1080P H.264 stream with moderate bitrate is often a useful reference. If the standard stream plays normally but the project stream fails, the problem is likely related to media compatibility rather than terminal failure.

The fourth step is to decide whether the source parameters can be changed. If the camera supports a suitable sub-stream, use it. If the source cannot be modified because it affects recording or platform rules, add a transcoding layer between the video source and the video phone.

Use sub-streams where possible

Many IP cameras and NVRs support main stream and sub-stream output. The main stream can be used for recording, high-definition monitoring, or video wall display. The sub-stream can be used for video phones, mobile terminals, browser clients, and low-bandwidth preview.

For video phone playback, a sub-stream with H.264 encoding, 720P or 1080P resolution, and controlled bitrate is usually easier to handle than a high-resolution main stream. This approach keeps the original monitoring system stable while providing a compatible stream for communication terminals.

Plan media parameters before deployment

Video phone integration should not be left until the final stage of a project. Expected video sources, display terminals, codecs, stream formats, network paths, and bandwidth conditions should be defined during system design.

This is especially important for projects involving surveillance linkage, emergency dispatch, video intercom, command centers, industrial sites, smart buildings, or multi-brand video platforms. Early planning can reduce on-site debugging time and avoid repeated compatibility problems during acceptance.

A flexible architecture should allow the same video source to serve different systems in different formats. The surveillance platform may need high-definition recording, the command center may need low-latency display, a browser client may need web-compatible streaming, and a video phone may need a lower-bitrate H.264 stream.

Integration value in dispatch and emergency communication

When video phones are used together with dispatch platforms, video gateways, monitoring systems, paging, emergency notification, and SIP communication, media compatibility becomes part of system design. It should not be treated as a minor endpoint issue.

For projects that combine SIP communication, video phones, surveillance linkage, and emergency command workflows, Becke Telcom / 贝克通信 can be considered as a practical integration partner. A well-planned architecture can help different terminals and platforms share video resources in suitable formats instead of forcing every device to decode the same heavy stream.

Summary

When a video phone cannot play video, the cause is often not a single fault. It may come from resolution mismatch, unsupported H.265 codec, excessive bitrate, missing SIP media negotiation, unsuitable surveillance stream settings, or limited terminal processing capability.

The most practical troubleshooting method is to compare the video phone’s supported media parameters with the actual stream output. If the source video exceeds the terminal’s capability, the project can reduce the camera parameters, use a sub-stream, or deploy a video gateway or transcoding server to create a suitable output.

As video phones become part of broader ICT, surveillance, dispatch, and emergency communication systems, media compatibility should be planned early. With proper resolution, codec, bitrate, and transcoding design, video phones can provide smoother visual communication and more reliable monitoring access in real projects.

FAQ

Why does audio work while video fails on a video phone?

Audio and video use different media streams and codecs. A device may register successfully and complete audio communication while failing to decode video because of unsupported codec, high resolution, high bitrate, or blocked video RTP traffic.

Should the main stream or sub-stream be used for video phone access?

In most projects, the sub-stream is more suitable for video phones. It usually has lower resolution and lower bitrate, which makes it easier for desktop terminals, mobile devices, and low-power endpoints to decode smoothly.

Can firmware upgrades solve playback problems?

Sometimes. Firmware may improve codec support, stream compatibility, and stability. However, firmware cannot overcome hardware limits. If the processor does not support the required codec or resolution, transcoding or source parameter adjustment is still required.

What should be recorded during project acceptance?

The acceptance record should include tested stream resolution, codec, bitrate, frame rate, video phone model, firmware version, network condition, concurrent channel count, and playback result. This helps future maintenance teams reproduce and diagnose problems.

Is a transcoding server necessary for every project?

No. If all video sources can output a compatible H.264 sub-stream with suitable resolution and bitrate, transcoding may not be required. A transcoding server becomes valuable when source parameters cannot be changed or when multiple systems need different output formats.
