Encyclopedia
In many engineering projects, equipment cannot simply be placed on a desk, fixed on the surface, or mounted as an exposed box. Some devices need to become part of a wall, panel, cabinet, console, machine body, corridor structure, or public facility surface. Embedded installation solves this need by placing the device partly or fully into a reserved opening.
This method is widely used for communication terminals, touch panels, control interfaces, display modules, access devices, emergency call points, medical panels, industrial operator stations, electrical control units, smart building interfaces, and public service equipment. Its value is not only visual. A properly embedded device can reduce protrusion, protect wiring, save space, support cleaning, lower collision risk, and make long-term operation more orderly.
The key point is that embedded installation is not just a mounting style. It changes the relationship between the device, the user, the structure, the cable route, and the maintenance process. When planned well, it becomes part of the system design rather than a decoration detail.
Equipment performance is not determined only by its circuit, software, material, or communication protocol. The installation method also affects how the device behaves in the real environment. A strong terminal installed in the wrong position may still be damaged by impact. A reliable control panel with exposed wiring may still create maintenance problems. A well-designed interface mounted at the wrong height may still be difficult to use.
Embedded installation reduces the distance between the device and the surrounding structure. Instead of standing outside the wall or panel as an added object, the equipment is recessed into a prepared opening. The visible part may be a front panel, screen, keypad, button, handset, speaker grille, indicator lamp, access reader, or service interface. Cables, rear housing, brackets, and connectors are hidden behind the mounting surface.
This creates a more controlled installation. The surrounding surface can protect the device from side impact, the rear space can organize wiring, and the front panel presents only the necessary operation area. The device looks and functions like part of a planned system rather than a temporary add-on.
The advantage is clear in areas with frequent movement, such as corridors, workshops, nursing stations, passenger halls, public entrances, clean rooms, machine rooms, vehicle passages, elevators, control desks, and service counters. A protruding box may interfere with people, carts, tools, cleaning equipment, or moving materials. A recessed device reduces that conflict.
Embedded installation normally includes a front visible interface, recessed body, mounting frame or bracket, reserved opening, rear wiring space, and fixing method. The front interface is what users see and operate. The recessed body contains device depth, terminals, circuit boards, connectors, or mechanical parts. The frame secures the device to the wall, panel, cabinet, or console.
The reserved opening is critical. It must match the device cut-out size, mounting tolerance, depth requirement, and service access need. If the opening is too small, the equipment may not fit. If it is too large, the front panel may not seal or align correctly. If the rear depth is insufficient, cables may bend sharply or internal components may press against the structure.
Rear wiring space must be planned before construction. Embedded devices may need power cables, network cables, signal lines, grounding wires, speaker lines, control cables, or communication interfaces. These cables should have proper entry direction, bending radius, strain relief, labeling, and separation between power and signal lines.
Fixing methods vary by device and site. Some devices use front screws, rear clamps, side brackets, back boxes, welded supports, DIN rails, or custom panels. The method should match vibration, user operation force, maintenance frequency, and environmental conditions. A device that users press frequently needs stronger fixation than a display that is only viewed.
The most visible advantage is space integration. By recessing equipment into a wall, panel, machine housing, cabinet door, or control console, the installation reduces the amount of device body exposed to the working area. This makes narrow spaces safer and easier to use.
In corridors, an exposed box may narrow the passage or create a collision point. In workshops, protruding devices may be hit by tools, carts, or moving materials. In hospitals, protrusions may interfere with beds, trolleys, cleaning machines, or staff movement. In passenger facilities, exposed equipment may become a point of impact or misuse.
Embedded installation also improves layout discipline. Devices appear in fixed positions and consistent heights. Cables are hidden. The relationship between device and environment becomes clearer. In projects with many repeated installation points, this creates a standard visual and functional pattern that is easier to inspect and maintain.
Embedded installation can improve physical protection because less of the device is exposed outside the surface. When a device protrudes from a wall, side impact may damage its shell, connector, handset, button, or cable entry. When the device is embedded, the surrounding wall or panel can act as partial protection.
This is useful in warehouses, industrial corridors, schools, transport stations, hospitals, parking areas, service halls, and public buildings where movement is frequent or uncontrolled. A recessed device is less likely to be struck from the side than a fully exposed one.
It can also reduce casual misuse. If only the front operating surface is visible, users are less likely to pull cables, access rear connectors, open boxes, or interfere with internal components.
However, embedded installation is not automatically vandal-proof. The front panel, buttons, screen, grille, screws, and visible accessories still need suitable strength. In high-risk public areas, designers may need tamper-resistant screws, metal front plates, reinforced brackets, protected microphones, impact-resistant screens, and controlled access to internal parts.
Many buildings and facilities require devices to work without disrupting the visual order of the space. Hotels, hospitals, commercial buildings, office parks, campuses, airports, subway stations, exhibition centers, laboratories, and public service halls often care about clean surfaces, consistent design, and reduced visual clutter. Embedded installation helps equipment blend into the environment.
This does not mean hiding the device completely. Emergency devices, service buttons, intercom panels, access readers, control panels, and public terminals must still be visible enough for users. The goal is to make the device look intentional and organized. A flush front panel with clear labeling usually looks more professional than a surface-mounted box with exposed cables.
Architectural consistency can also improve user confidence. When equipment appears integrated, users are more likely to recognize it as an official service point. A loose box or temporary-looking installation may create doubt, especially in public facilities.
One of the strongest practical advantages is cable concealment. Exposed cables are vulnerable to pulling, bending, cutting, water entry, accidental disconnection, and unauthorized access. They also make the installation look unfinished. Embedded installation hides cable routes behind walls, panels, cabinets, or consoles, reducing both physical risk and visual disorder.
Hidden wiring must still be organized. The rear space should provide proper cable entry, strain relief, bend radius, grounding, labeling, and separation between power and signal lines. If cables are simply squeezed behind the device, maintenance becomes difficult and faults may increase.
For communication and control equipment, cable stability is essential. A loose network cable may cause intermittent connection. A strained power wire may create service interruption. A poorly grounded shield may increase noise. A signal cable routed near high-power lines may suffer interference. Embedded installation gives designers a controlled space to manage these risks.
In public areas, concealed wiring also improves safety. Users cannot easily touch or pull cables. Cleaning staff are less likely to snag them. Children, visitors, or unauthorized users cannot easily access connectors. This helps protect system continuity.
Embedded installation can support cleaner surfaces because the visible device area is reduced and the front interface can be flatter. This is valuable in hospitals, laboratories, clean rooms, food processing areas, pharmaceutical production, kitchens, schools, and commercial service spaces where frequent cleaning is required.
Surface-mounted devices often create edges, gaps, brackets, external cable routes, and dust collection points. A recessed device with a smooth front panel can reduce these dead corners if the design includes suitable sealing, material, and alignment.
In hygiene-sensitive areas, front panel material matters. Stainless steel, treated metal, glass, sealed membrane panels, or smooth engineering materials may be selected according to cleaning chemicals, disinfection frequency, moisture exposure, and site standards. The installation should avoid unnecessary gaps, absorbent materials, and hard-to-clean details.
Cleaning convenience must be balanced with maintenance access. A fully sealed front may be easy to wipe, but technicians still need a way to service the device. Front-opening panels, removable modules, rear service access, or maintenance hatches may be required.
Embedded installation can reduce protruding edges and exposed hardware. This is important near escape routes, narrow corridors, stairwells, hospital passages, school corridors, platforms, public entrances, and industrial walkways. A device that extends far from the wall may become a problem when the area is crowded, poorly lit, or used during emergency movement.
Safe operation also includes clear interaction. The device should be installed at a height and angle that users can operate without awkward posture. Emergency call buttons, intercom panels, access readers, medical call points, and control interfaces should be reachable and recognizable.
If the device includes a screen, microphone, speaker, handset, camera, or button, the front layout must support real use. A deeply recessed microphone may reduce audio pickup. A poorly placed speaker grille may affect sound clarity. A button hidden in a shadowed recess may be difficult to see. Good embedded installation protects the device without weakening the user interface.
Embedded installation can be applied to many surface types, but the design cannot be copied blindly. A wall recess is different from a cabinet door cut-out. A control console is different from a machine panel. A clean room partition is different from a concrete tunnel wall. The installation surface determines structural support, cable path, access method, and finishing requirements.
| Installation Surface | Typical Use | Main Advantage | Key Planning Concern |
|---|---|---|---|
| Wall recess | Intercom panels, emergency buttons, access terminals, public service devices | Clean appearance and reduced protrusion | Opening size, rear depth, cable route, and maintenance access |
| Control cabinet door | HMI screens, switches, indicators, communication modules, control panels | Operator interface integrated with equipment cabinet | Door strength, cable movement, grounding, and internal clearance |
| Machine panel | Operator controls, status displays, safety interfaces, local terminals | Close operation near the process point | Vibration, heat, service space, and protection from accidental operation |
| Console surface | Dispatch panels, control keyboards, touch screens, audio interfaces | Compact and ergonomic workstation layout | Viewing angle, hand reach, cable management, and future replacement |
| Architectural panel | Hotel, hospital, office, campus, and public facility service interfaces | Better visual integration with interior design | Finish matching, cleaning, user visibility, and safe height |
The same device may require different brackets, front panels, cable entries, sealing methods, or maintenance routes depending on the surface. The design should begin with the actual installation environment rather than only the device drawing.
The surface must also support the device weight and operating force. A thin decorative panel may flex when users press buttons. A cabinet door may sag if too much weight is added. A machine panel may transmit vibration. A wall may need reinforcement before cutting.
Industrial control systems often use embedded installation for operator panels, HMI screens, push-button stations, status indicators, local control terminals, communication interfaces, and equipment monitoring modules. These devices need to be close to the process but should not create obstacles around machines or production lines.
Embedding the device into a machine panel or control cabinet gives operators a fixed and protected interface. Workers can view machine status, start or stop processes, acknowledge alarms, change parameters, or communicate with the control system from a defined position.
Industrial environments may include vibration, dust, oil mist, temperature change, and accidental impact. Embedded installation can help, but panel sealing, gasket design, material, and cable entry must match the site. If a cabinet is exposed to dust or moisture, a poorly cut opening can weaken the enclosure protection level.
Maintenance access is important. Industrial panels may need module replacement, wiring checks, firmware updates, or terminal inspection. If the embedded device can only be removed by dismantling large machine parts, future maintenance becomes costly.

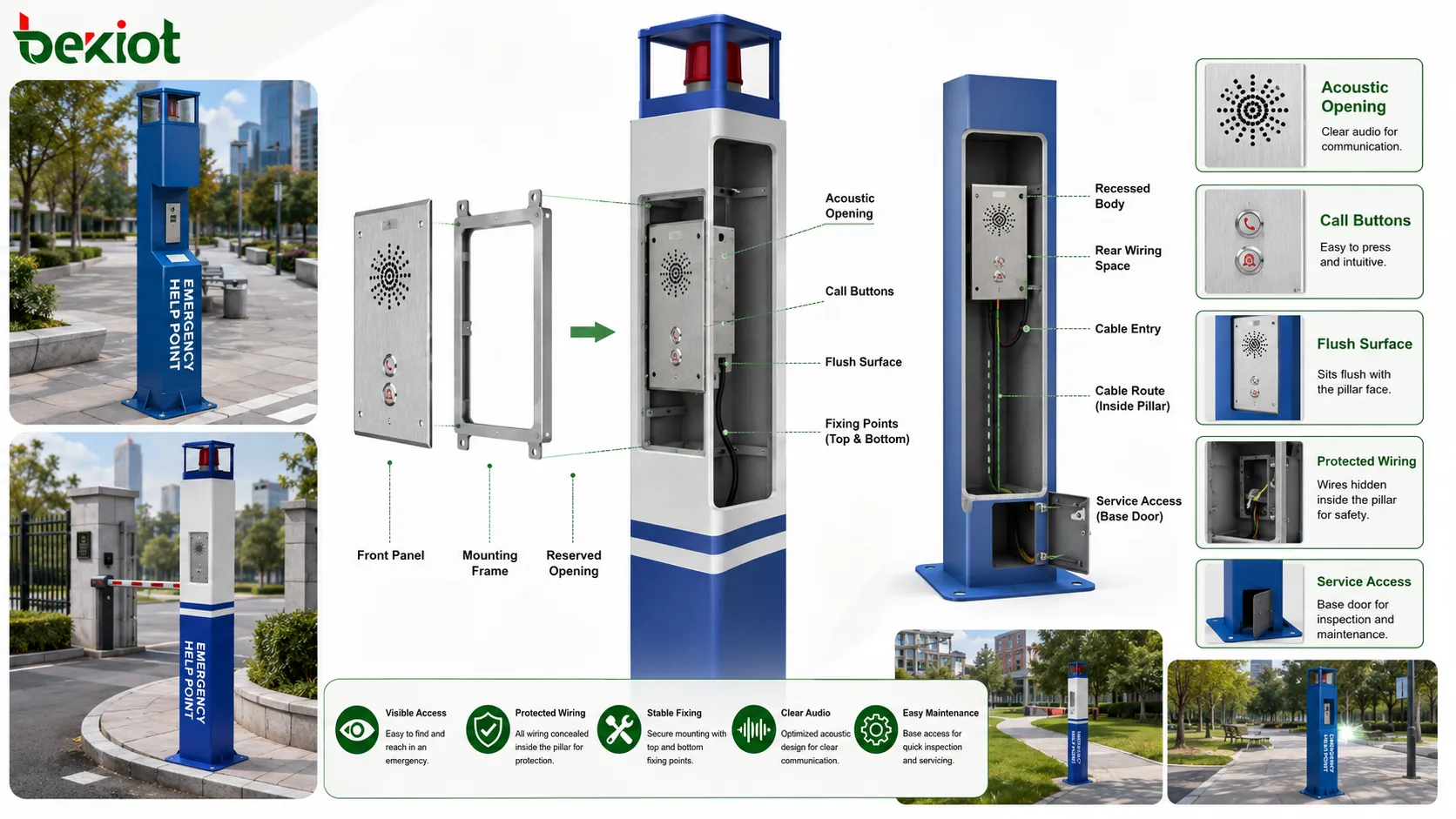

Communication devices are often embedded when they need to be permanently available in a specific location. This includes intercom panels, emergency call stations, hands-free terminals, public help points, visitor communication devices, service phones, and control-room communication interfaces.
Embedding helps keep the device stable and visible while protecting the body and wiring. In a corridor, platform, gate, parking entrance, tunnel, hospital area, or industrial checkpoint, users may need to find the communication point quickly. A flush or semi-flush front panel can reduce accidental damage while keeping the operation surface accessible.
Audio performance should be considered. Microphones, speakers, and acoustic openings must not be blocked by the mounting surface. A recessed design that looks neat but reduces voice pickup or speaker output will fail in real use.
For emergency communication, visibility and labeling are as important as protection. If the device is too hidden, users may not notice it. If the button is not clearly marked, users may hesitate. Embedded installation should integrate the device into the environment without making it disappear from user attention.
Healthcare and clean environments often require equipment to be easy to wipe, resistant to cleaning processes, and integrated into walls or panels without unnecessary gaps. Embedded installation is useful for nurse call panels, medical communication interfaces, clean room phones, access control panels, monitoring displays, and service terminals.
In hospitals, embedded panels can reduce protrusions in corridors, wards, operating areas, treatment rooms, laboratories, and nursing stations. This helps keep passages clear for beds, carts, and staff movement. It also reduces exposed cable routes that may collect dust or interfere with cleaning.
In clean rooms and laboratories, surface smoothness and sealing are important. A device mounted on top of a wall may create edges where dust or particles collect. A properly embedded front panel can reduce these collection points when material, gasket, screw design, and installation gap are suitable.
Healthcare environments also require reliable service access. If a nurse call panel, communication terminal, or medical service interface fails, it may affect workflow quickly. The embedded structure should allow maintenance without damaging the wall finish or disturbing nearby operations more than necessary.
Transport and public facilities use embedded installation for passenger help points, ticketing interfaces, emergency call panels, platform communication points, elevator assistance panels, parking payment devices, access gates, information screens, and public service terminals.
In stations or terminals, exposed devices may be hit by luggage, cleaning machines, or passenger movement. Embedded installation reduces protrusion and helps maintain a clear public route. It also makes the equipment look like part of the facility rather than a temporary device added later.
Public devices must be both durable and understandable. The front panel should clearly show where to press, speak, scan, or read. If the device is embedded too deeply, users may not notice it or may find it difficult to operate. Good public design balances flush mounting with visual guidance.
Standardized embedded design also helps repeated deployment. When every platform, gate, elevator lobby, or parking entrance uses a similar installation format, users can recognize service points faster and maintenance staff can follow a consistent inspection method.
Commercial buildings, hotels, office towers, residential complexes, shopping centers, campuses, and exhibition halls often use embedded installation to balance function and interior appearance. Access readers, intercom panels, room control panels, lighting controls, thermostat panels, information displays, and emergency buttons can be integrated into walls or decorative panels.
Embedded devices are less likely to be bumped, cables are hidden, cleaning is easier, and the building interface becomes more orderly. In customer-facing spaces, this can improve the perceived quality of the facility.

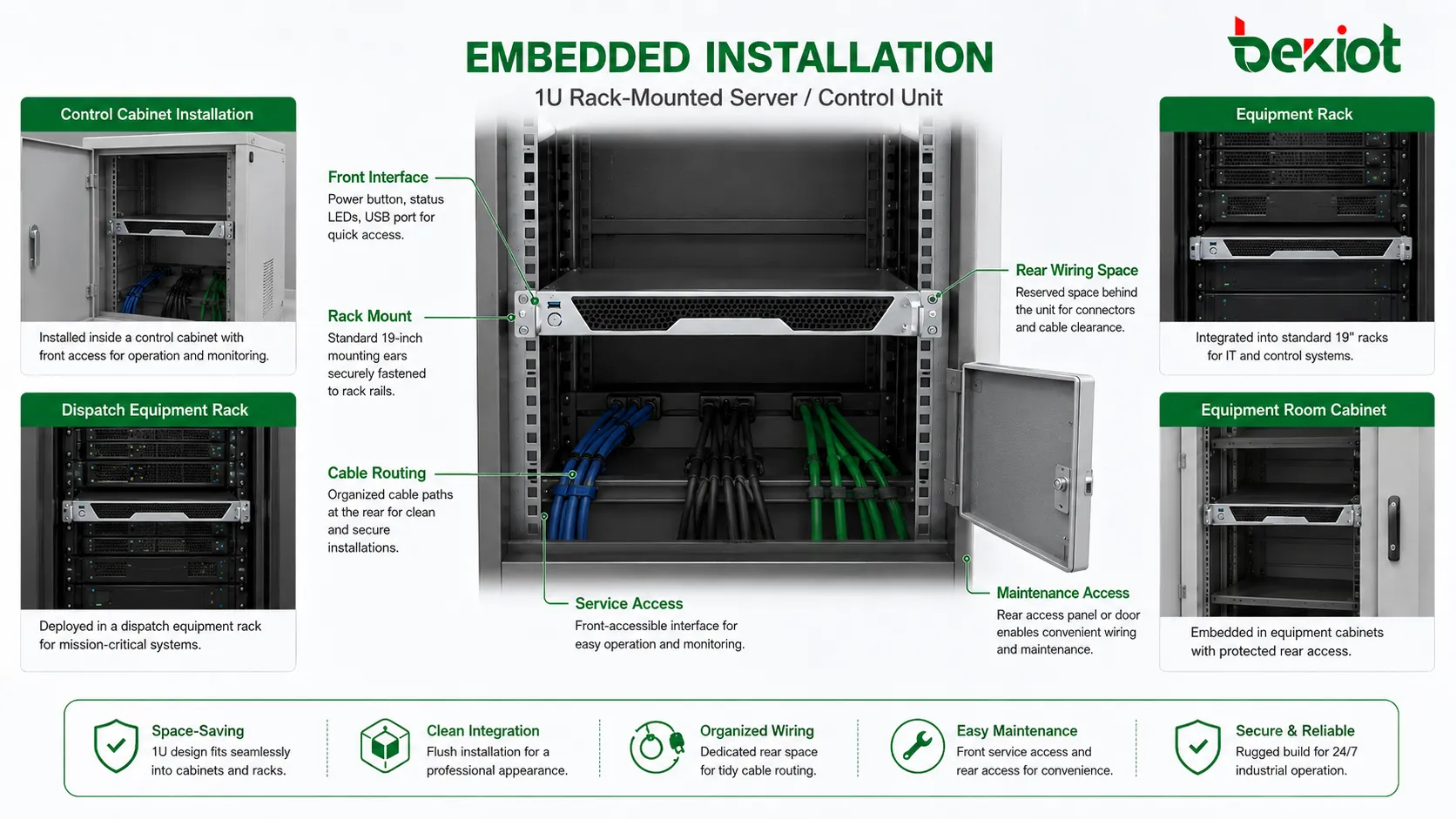

Embedded installation is also common in control cabinets, server room panels, dispatch consoles, operator desks, electrical cabinets, and equipment racks. Control cabinet doors may include displays, buttons, meters, selector switches, indicator lamps, and communication ports. Dispatch and control consoles may use embedded microphones, touch screens, keyboards, audio modules, call panels, and control buttons.
These environments require coordination between electrical engineers, low-voltage system designers, architects, decoration contractors, and device suppliers. Wall finish, panel material, cut-out size, mounting depth, cable movement, and maintenance access must be confirmed before construction.
Embedded installation changes the relationship between the device and the environment. The device may be partly hidden inside a wall cavity, cabinet, machine panel, or architectural structure. This hidden space may have different temperature, humidity, ventilation, dust, or condensation behavior from the visible front area.
Heat dissipation is a common issue. A device that works well when surface mounted may become warmer when recessed into a closed cavity. Displays, processors, power modules, amplifiers, and communication circuits may generate heat. If the rear cavity has poor airflow, internal temperature may rise and shorten device life.
Moisture control is also important. If the wall or panel is exposed to outdoor temperature changes, condensation may form inside the cavity. If water can enter through cable openings, screw holes, panel gaps, or poorly sealed edges, the hidden space may become a moisture trap. Sealing should protect the device without ignoring ventilation where heat is present.
Structural planning should consider surface strength. Cutting an opening can weaken a wall panel, cabinet door, decorative surface, or machine cover. Reinforcement may be required. The installation should remain stable under vibration, user pressure, door movement, and long-term operation.
Embedded installation usually requires more precise construction than surface mounting. The front panel must align with the surrounding surface. If the opening is crooked, too large, too small, or poorly finished, the final result may look unprofessional and may affect sealing or fixation.
Cut-out dimensions should follow the device drawing. The installer should confirm whether dimensions refer to the embedded body, front panel, screw holes, gasket area, or clearance space. Misreading the drawing can cause rework.
Surface flatness matters. If the wall or panel is uneven, the front plate may not sit properly. This can create gaps, stress, water entry, or visual defects. In some cases, a mounting frame or adapter plate is needed to compensate for site irregularity.
Alignment also affects user confidence and operation. A tilted screen, off-center button, uneven front plate, or recessed label can make the device look unreliable. In industrial areas, poor alignment may affect mechanical durability and sealing.
One risk of embedded installation is making equipment too difficult to service. A clean front surface is attractive, but maintenance teams still need access to the rear body, terminals, connectors, fuses, modules, firmware ports, and fixing screws. If the device can only be repaired by damaging wall finishes, the design is poor.
Maintenance access can be provided in different ways. Some devices are front-removable. Some require rear access from a cabinet, service corridor, wall cavity, or maintenance hatch. Some use hinged front panels or modular cartridges. The method should be chosen before installation.
Spare cable length is also important. If cables are cut too short, the device cannot be pulled forward for service. If cables are too long and unmanaged, they may interfere with mounting or heat dissipation. A suitable service loop should be planned and secured.
Labeling should remain accessible. Hidden wires are harder to trace if they are not labeled. Each cable, terminal, and connector should match documentation. Maintenance teams should not need to guess which cable belongs to power, network, alarm, audio, control, or grounding.
Embedded installation is not always better than other methods. It should be selected when its advantages match the site need. Surface-mounted devices are easier to install and replace. Desktop devices are flexible and movable. Rack or cabinet installation is suitable for centralized equipment. Embedded devices are more integrated and protected but require more planning.
| Installation Method | Main Strength | Typical Limitation | Best Suited For |
|---|---|---|---|
| Embedded installation | Clean integration, reduced protrusion, hidden wiring, stronger site order | Requires precise opening, depth planning, and maintenance access | Permanent interfaces, public areas, panels, consoles, clean spaces, corridors |
| Surface-mounted installation | Fast deployment, easier replacement, simple retrofit | More protrusion, more visible cables, higher collision risk | Retrofit projects, utility areas, temporary systems, rough environments |
| Desktop or movable installation | Flexible position and easy relocation | Less fixed protection and more cable exposure | Office desks, temporary workstations, movable service points |
| Rack or cabinet installation | Centralized equipment management and high capacity | Less direct user access in field areas | Server rooms, network rooms, control centers, equipment clusters |
The choice should consider user access, safety, aesthetics, wiring, maintenance, environment, cost, and future change. The most professional design is not always the most hidden design. It is the design that best supports the system purpose throughout its lifecycle.
| Mistake | Typical Result | Better Fix |
|---|---|---|
| Focusing only on the front appearance | The panel looks clean but heat, wiring, or service access becomes poor | Check rear depth, cable route, ventilation, and maintenance method before construction |
| Cutting openings before confirming the device model | Depth, screw position, gasket size, or front plate dimension may not match | Use the final confirmed drawing and verify all tolerances before cutting |
| Ignoring maintenance access | Repair requires removing decorative panels or damaging the surrounding structure | Provide front-removal, rear access, service loop, labels, or a maintenance hatch |
| Poor sealing in harsh environments | Dust, moisture, or cleaning liquid may enter through gaps or cable openings | Plan gasket, cable gland, front gap, material, and installation quality together |
| Making the device too hidden | Users cannot find emergency, service, or public interaction points quickly | Keep the front interface visible, labeled, reachable, and easy to understand |
A suitable embedded installation should answer several practical questions. Does the device need a permanent and fixed position? Is the site surface suitable for cutting or recessing? Is there enough rear depth? Can cables enter safely? Can the device dissipate heat? Can it be serviced without damaging the surrounding structure?
User behavior should also be reviewed. Will users see the device easily? Can they reach it comfortably? Is the front panel readable? Are buttons, screens, speakers, microphones, and labels positioned correctly? Does the installation height match the user group?
Environmental conditions matter. Is the device exposed to dust, moisture, cleaning chemicals, vibration, impact, heat, cold, or public misuse? Does the embedded structure improve protection or create hidden risks? A recessed cavity can protect against collision, but it may also trap heat or moisture if poorly designed.
Maintenance teams should be included in the evaluation. They can identify access problems, labeling needs, spare cable requirements, and replacement difficulties. A design that satisfies only the architect or installer may fail later in operation.
The final judgment should be based on lifecycle value. Embedded installation is suitable when the benefits in safety, space saving, appearance, wiring protection, hygiene, and operational stability justify the additional planning and construction requirements.
Embedded installation provides special advantages because it integrates equipment into the surrounding structure rather than leaving it exposed as a separate object. It saves space, hides wiring, improves visual order, reduces collision risk, supports cleaning, protects interfaces, and creates stable fixed service points for long-term operation.
Its application scenarios include industrial control panels, communication terminals, healthcare interfaces, clean rooms, transport facilities, public help points, commercial buildings, access systems, cabinets, consoles, and machine interfaces. In each scenario, the value depends on whether the device needs to be permanent, accessible, protected, and visually or structurally integrated.
The key is careful planning. Opening size, rear depth, cable routing, heat dissipation, sealing, material, structural strength, user height, acoustic performance, maintenance access, and documentation all affect the final result. When these factors are handled properly, embedded installation becomes more than a neat mounting method; it becomes a reliable part of the system design.
No. It is most suitable for fixed, long-term, user-facing, or panel-integrated devices. Equipment that must move frequently, be replaced often, or remain fully accessible from all sides may be better suited to surface-mounted, desktop, rack, or cabinet installation.
The biggest advantage is integration. Embedded installation reduces protrusion, hides cables, improves appearance, protects the device body, and keeps the installation closer to the surrounding surface. This is useful in corridors, public areas, control panels, clean spaces, and permanent service points.
The project team should confirm the device model, cut-out size, front panel dimension, rear depth, cable entry direction, mounting method, service access, wall or panel strength, and environmental protection requirements before cutting the opening.
Yes, if maintenance access is not planned. A recessed device may be difficult to remove or repair if there is no front-removal method, rear access, service loop, clear labeling, or maintenance hatch. Good embedded design includes service planning from the beginning.
It can help reduce exposure, but protection depends on the complete design. The front panel, gasket, cable entry, mounting surface, sealing method, material, and installation quality all affect water and dust resistance. Embedding alone does not guarantee environmental protection.
