In a hazardous-area project, Zone 1 is not a product label or a general marketing phrase. It is an engineering classification that describes a location where an explosive gas atmosphere is likely to occur occasionally during normal operation. This classification affects how engineers select electrical, communication, alarm, control, monitoring, and field operation equipment.
Zone 1 sits between Zone 0 and Zone 2 in the gas hazardous-area model. The exposure is not continuous as in Zone 0, but the risk is more than an unlikely abnormal event as in Zone 2. This is why Zone 1 equipment should be reviewed against the real process conditions, not only against a catalogue title or a short nameplate description.
Zone 1 areas are often found around process units, tank farms, loading points, pump skids, solvent handling areas, offshore platforms, pharmaceutical production lines, fuel storage sites, wastewater treatment facilities, and biogas plants. Releases may occur during filling, venting, sampling, draining, mixing, or connecting and disconnecting process lines.
Good classification helps solve two problems at the same time. It prevents engineers from using equipment with insufficient protection in a hazardous area, and it also prevents unnecessary over-classification that increases cost, limits equipment options, and complicates maintenance without improving actual safety.
In IEC, IECEx, ATEX, and many international projects, hazardous gas areas are commonly divided into Zone 0, Zone 1, and Zone 2. Zone 1 applies to an area where an explosive atmosphere formed by flammable gas, vapour, or mist is likely to occur occasionally during normal operation.
The phrase “normal operation” is important. It does not mean only accidents or major failures. It includes expected plant activities such as tank breathing, pump seal emissions, valve operation, vapour release near filling points, sampling, draining, and routine connection work. If a release can happen during ordinary process activity, the nearby area may need to be classified as Zone 1.
The practical difference between the zones is the likelihood and duration of the explosive atmosphere. If the atmosphere is present continuously, frequently, or for long periods, the area is usually treated as Zone 0. If it is not expected during normal operation and would appear only briefly under abnormal conditions, Zone 2 may be more appropriate.
| Gas Zone | Basic Meaning | Typical Risk Level | Equipment Selection Direction |
|---|---|---|---|
| Zone 0 | Explosive gas atmosphere is present continuously, frequently, or for long periods | Highest ongoing exposure | Very high protection level |
| Zone 1 | Explosive gas atmosphere is likely to occur occasionally during normal operation | High exposure, but not continuous | High protection level for expected process risk |
| Zone 2 | Explosive gas atmosphere is not likely during normal operation and, if it occurs, remains only briefly | Lower exposure probability | Enhanced protection for infrequent risk |
Zone 1 is an engineering area classification. It affects equipment selection, cable entry, wiring method, enclosure design, inspection routine, and maintenance practice.
Zone classification starts with the process, not with the equipment catalogue. Engineers review the flammable substance, possible release points, release frequency, release rate, ventilation conditions, physical layout, and the likely persistence of a flammable atmosphere. In many projects, this work is part of a hazardous area classification study during front-end engineering, detailed design, plant expansion, or modification.
The first question is where flammable gas or vapour may escape. Typical sources include pump seals, compressor seals, flange connections, vents, sample points, loading arms, storage tank openings, relief devices, and process drains.
Some sources release only during maintenance or upset conditions, while others may release intermittently during normal production. A source that can emit flammable gas during ordinary plant operation is a strong reason to review whether the surrounding area should be Zone 1.
Ventilation can change both the classification and the size of the hazardous area. Reliable natural or forced ventilation can dilute a release and reduce accumulation. Poor ventilation, enclosed rooms, pits, trenches, and low areas can allow vapour to collect, making Zone 1 classification more likely or extending the zone boundary.
This explains why the same process connection may be classified differently outdoors and indoors. The release source may be similar, but gas accumulation behavior can be very different.
Engineers also consider how often a flammable atmosphere may appear and how long it may remain. Zone 1 is linked to occasional occurrence during normal operation. The decision should reflect how the plant actually runs, not only how piping or equipment appears on a drawing.
Not all gases behave the same way. Density, vapour pressure, flash point, auto-ignition temperature, explosive limits, and ignition sensitivity all influence the classification result. Hydrogen, acetylene, hydrocarbons, solvents, alcohols, and other flammable materials may require different assumptions.
The gas group and temperature class of the final equipment must also match the substance present at the site. A device may be certified for Zone 1, but still be unsuitable if its gas group or temperature class does not match the actual hazard.
The final extent of Zone 1 is influenced by process arrangement, elevation changes, drainage paths, cable routes, nearby hot surfaces, and possible ignition sources. Classification drawings often define not only the zone category, but also the three-dimensional boundary around equipment, walkways, skids, tanks, and access points.
A common mistake is treating Zone 1 as if it were only a product feature. In reality, Zone 1 first describes the environment. The location is classified because of the expected likelihood of a flammable atmosphere. Only after the area is classified can engineers select equipment with the correct protection concept and certification.
A Zone 1 telephone, camera, beacon, junction box, pushbutton station, loudspeaker, network cabinet, or control device is not automatically suitable for every hazardous site. Its certification, gas group, temperature class, ambient temperature range, ingress protection, cable entry method, accessories, and installation conditions must match the project.
Correct hazardous-area protection depends on the full chain: area classification, equipment selection, cable entry, grounding, sealing, installation practice, inspection, and maintenance. A certified product can still become non-compliant if it is installed incorrectly or maintained without regard to the certificate conditions.
Zone 1 projects are usually controlled by a mix of technical standards, certification schemes, and local regulations. The exact requirements depend on the country, industry, project specification, and approval route, but several frameworks are commonly seen in international hazardous-area work.
The IEC 60079 series is a major technical reference for electrical installations in explosive atmospheres. Different parts address area classification, equipment selection, installation, inspection, maintenance, general Ex requirements, and specific protection concepts such as flameproof, increased safety, intrinsic safety, encapsulation, and pressurization.
In practical engineering, these standards help define how an area is classified, which Ex protection concepts are acceptable, how equipment should be marked, and how installation quality should be inspected during the equipment lifecycle.
IECEx is an international conformity assessment system based on IEC standards for equipment used in explosive atmospheres. It is widely used in global projects because it provides a structured certification framework linked to the IEC 60079 series. For multinational engineering, procurement, and operating teams, IECEx helps create a common technical basis across different regions.
In the European Economic Area, ATEX is central to placing equipment on the market for explosive atmospheres. Engineers often review ATEX category, zone suitability, and Ex marking together. For Zone 1 gas applications, equipment is commonly associated with Category 2G or an equivalent high level of protection suitable for that zone.
In the United States and some related projects, hazardous locations may be handled through Class/Division or Zone-based approaches depending on the code path. Class I, Zone 1 relates to flammable gases, vapours, and mists, and overlaps in practical intent with international Zone 1 gas classification. However, terminology, marking, and approval details can differ, so equipment should not be substituted across jurisdictions without checking the local code and certification basis.
A “Zone 1 rating” is not one single item on a nameplate. It usually involves zone suitability, Ex protection concept, gas group, temperature class, equipment protection level or ATEX category, ingress protection, ambient temperature range, and certification scheme. These details should be checked together before procurement or installation.
For gas atmospheres, Zone 1 equipment is typically selected with a high protection level, commonly shown as Gb in IEC-style marking. In ATEX project language, this usually corresponds to Category 2G equipment. The device should not become an ignition source in normal operation and should maintain the required protection under the fault conditions covered by its protection concept.
Several protection methods may be used for Zone 1 equipment. Ex db flameproof enclosures contain an internal explosion and prevent flame transmission to the surrounding atmosphere. Ex eb increased safety reduces the likelihood of arcs, sparks, or excessive temperatures in normal service. Ex ib intrinsic safety limits electrical and thermal energy. Ex mb encapsulation encloses ignition-capable parts in protective material. Ex p systems keep hazardous atmosphere away from ignition-capable parts by maintaining protective gas pressure.
The correct protection concept depends on the device type and the site condition. A field telephone, beacon, camera, loudspeaker, paging station, sensor, control station, or network enclosure may use different protection methods even inside the same Zone 1 plant.
Zone 1 equipment must match the gas group present at the site. In many gas applications, markings may reference IIA, IIB, or IIC. Equipment approved for IIC is generally suitable for more demanding gas conditions within that grouping hierarchy, while equipment approved only for IIA may not be accepted where more easily ignited gases are present.
Every Ex device has a maximum surface temperature classification, often expressed as T1 through T6 in gas environments. The selected temperature class must remain below the auto-ignition temperature of the hazardous substance. For example, a T6 device has a lower maximum surface temperature than a T3 device, which can be critical in solvent, gas, and chemical process areas.
IP ratings such as IP66 or IP67 are not the same as explosion protection, but they still matter in Zone 1 projects. Poor sealing can allow water, dust, or corrosive contamination to damage a certified device, reduce reliability, or affect safe installation assumptions.
Ambient temperature range is also important. Desert sites, offshore decks, cold regions, hot process areas, and enclosed cabinets may expose equipment to conditions outside a standard rating. If the site temperature falls outside the certified range, the equipment may not be suitable even if the Ex marking looks correct.
| Marking Element | What It Tells You | Why It Matters in Zone 1 |
|---|---|---|
| Gb / 2G | Protection level or category for gas atmosphere use | Indicates suitability for Zone 1 gas applications when other conditions match |
| Ex db / eb / ib / mb / p | Protection concept used by the equipment | Shows how ignition risk is controlled |
| IIA / IIB / IIC | Gas group compatibility | Must match the flammable substance at site |
| T1-T6 | Maximum surface temperature classification | Must remain below the gas ignition temperature |
| IP66 / IP67 / IP68 | Resistance to dust and water ingress | Supports durability in harsh industrial conditions |
| Ambient temperature range | Approved operating temperature window | Important for offshore, desert, arctic, or high-heat process sites |
Zone 1 areas may contain far more than lights and junction boxes. Modern industrial sites often need certified communication, alarm, control, monitoring, and field operation equipment.
Explosion-protected industrial telephones and SIP phones
PA and GA loudspeakers for public address and emergency alarms
Manual call points, beacons, horns, and alarm stations
Cameras and monitoring devices
Field instrumentation, transmitters, sensors, and analyzers
Local operator stations, pushbuttons, and control panels
Motors, luminaires, junction boxes, and cable glands
Network devices or pressurized cabinets used for industrial communication and control
In a communication system, a Zone 1 installation may include Ex telephones for emergency call points, Ex loudspeakers for plant-wide alerts, Ex beacons for visual warnings, and safe-area servers or dispatch platforms connected through suitable barriers, interfaces, or certified network architecture. The hazardous-area field device is only one part of the compliance chain.

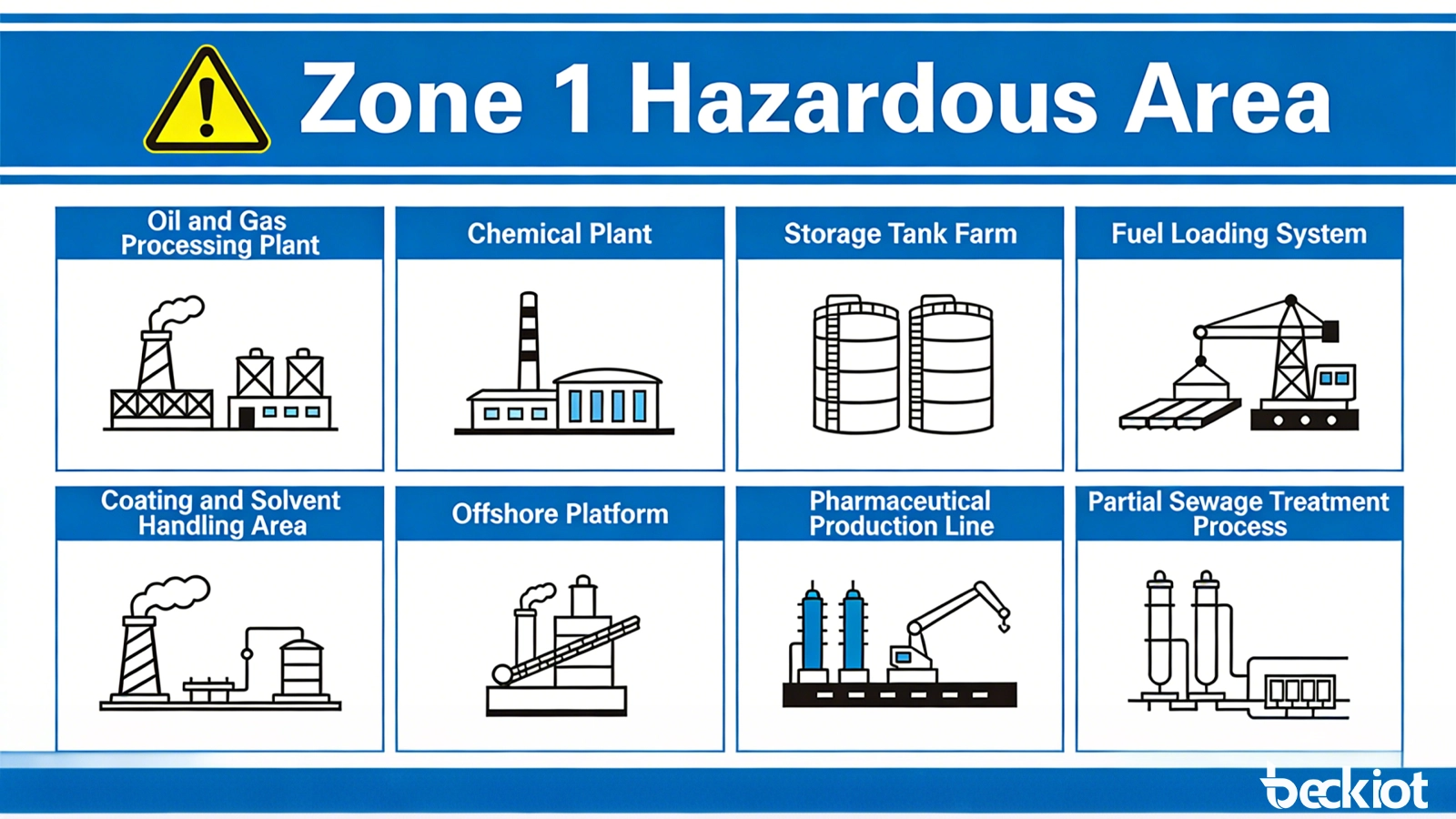

Zone 1 classifications appear wherever flammable gas or vapour may occur occasionally during normal operation. The exact boundary should always come from the project’s hazardous area classification study, but several industries commonly include Zone 1 locations.
Hydrocarbon processing units, wellhead areas, compressor stations, loading skids, tank manifolds, and refinery process zones often contain Zone 1 sections. Vapour releases may occur during normal transfer, venting, or process operation, so flameproof, intrinsically safe, or otherwise certified equipment is commonly required.
Reactors, solvent handling lines, blending stations, filling points, pump areas, and sample cabinets can create occasional explosive gas atmospheres in routine service. Zone 1 equipment is often selected for process communication, alarm notification, instrumentation, and local control functions in these areas.
Offshore topsides, drilling areas, process modules, utility skids, and enclosed technical rooms often combine combustible gas exposure with salt spray, vibration, and severe weather. In these settings, Ex certification, corrosion resistance, high IP protection, and broad temperature tolerance are all important.
Where alcohols, solvents, and volatile compounds are handled during mixing, extraction, drying, or packaging, localized Zone 1 classifications may be required. Equipment selection often has to balance safety, washdown resistance, cleanability, and process continuity.
Tank farms, loading arms, fuel pump rooms, loading bays, and transfer points may create occasional flammable vapour clouds during regular operation. Communication, alarms, and local emergency controls in these areas often rely on certified devices suitable for Zone 1.
Digesters, sludge treatment areas, gas handling sections, and some enclosed treatment spaces can contain methane-rich atmospheres. Zone 1 classification may apply near release sources or in poorly ventilated sections where gas is likely to occur during normal plant operation.
The difference between Zone 1 and Zone 2 affects cost, equipment choice, installation method, inspection workload, and compliance risk. Zone 1 normally requires a higher protection level and stricter installation controls. Using Zone 2 equipment in a Zone 1 area can create a serious safety and compliance problem.
At the same time, classifying too much of a site as Zone 1 can increase cost and limit equipment options without improving the real design. The correct classification is not always the most conservative one. It should be supported by process conditions, release probability, ventilation, layout, and the applicable code framework.
Certified equipment can still be unsafe if it is installed incorrectly. In Zone 1 projects, attention usually goes to cable entries, stopping plugs, earthing and bonding, sealing arrangements, conduit or cable system type, separation of intrinsically safe and non-intrinsically safe circuits, enclosure integrity, and inspection records.
Cable glands, blanking elements, and stopping plugs must be compatible with the equipment certification and environmental rating. Ambient temperature, solar gain, nearby hot pipework, and enclosure loading should be checked because they can affect surface temperature compliance. Corrosion, UV exposure, vibration, and chemical attack can shorten service life even when the original Ex certification is valid.
Maintenance access should be considered before installation. Some Ex concepts require very specific procedures during opening, servicing, or replacement. Initial inspection and periodic inspection are central to long-term compliance. For communication systems, designers should also review power routing, surge protection, network topology, redundancy, and the interface between hazardous-area devices and safe-area control systems.
Before purchasing Zone 1 equipment, the site requirement should be checked against the product certificate, nameplate marking, installation manual, and project specification. The following points are usually part of a practical review.
Confirm the area is truly classified as Zone 1 for gas, vapour, or mist
Identify the flammable substance, gas group, and required temperature class
Check whether the project requires IECEx, ATEX, local approval, or multiple certifications
Verify that the protection concept is suitable for the equipment function
Confirm the equipment protection level or category matches Zone 1 requirements
Review the approved ambient temperature range
Check ingress protection, corrosion resistance, and mechanical suitability for the site
Make sure cable glands, plugs, barriers, and accessories are equally compliant
Review installation, inspection, and maintenance instructions before procurement
For example, a Zone 1 industrial telephone used offshore may need gas-area certification, IP66 or higher enclosure protection, corrosion-resistant materials, glove-friendly controls, clear audio output in high-noise areas, and compatibility with SIP or dispatch systems located in the safe area.
| Misunderstanding | Why It Is a Problem | Better Approach |
|---|---|---|
| “IP66 means it is explosion-proof.” | IP ratings address dust and water ingress, not ignition protection. | Check Ex certification, protection concept, gas group, and temperature class. |
| “Any ATEX label is enough.” | The category, marking, gas group, temperature class, and documentation must fit the application. | Review the full certificate and marking, not only the logo. |
| “Zone 1 and Class I, Division 1 are always interchangeable.” | They are related concepts, but approval paths and markings differ by jurisdiction. | Check local code, approval basis, and project specification before substitution. |
| “The certified product alone guarantees safety.” | Incorrect installation, accessories, or maintenance can break compliance. | Control the full chain from selection to inspection and lifecycle maintenance. |
| “Zone 1 means the whole plant is the same.” | Hazardous areas are often localized and depend on release sources and ventilation. | Use documented hazardous area classification drawings and process assessment. |
A correct Zone 1 equipment selection should begin with the hazardous area classification drawing and process basis. The product should not be selected only because it is described as “explosion-proof” or “Zone 1 rated.” The marking must match the gas atmosphere, protection level, gas group, temperature class, ambient range, and certification requirements of the actual location.
The second check is installation compatibility. Cable glands, seals, accessories, mounting method, wiring separation, grounding, and environmental protection should match both the certificate and the site condition. A mismatch here can create a compliance problem even when the main equipment is certified.
The third check is lifecycle maintainability. Zone 1 equipment must remain compliant after inspection, cleaning, repair, replacement, and long-term exposure. If maintenance teams cannot clearly identify the device marking, spare parts, cable entries, or inspection requirements, the installation may become harder to manage over time.
Zone 1 hazardous areas are places where explosive gas atmospheres may occur occasionally during normal operation. They require more than ordinary industrial equipment and more than weatherproof enclosures. Selection should be based on area classification, Ex protection concept, gas group, temperature class, EPL or category, IP performance, ambient temperature range, installation method, and inspection requirements.
For industrial telephones, alarm devices, cameras, instrumentation, control stations, network enclosures, or plant-wide communication systems, certification must be checked against real site conditions. A clear understanding of Zone 1 helps reduce ignition risk, avoid wrong product selection, and keep the system reliable throughout its service life.
No. Zone 1 is an area classification. Explosion-proof or flameproof is one possible equipment protection concept used in that area, but it is not the only one.
Zone 1 refers to explosive atmospheres formed by flammable gas, vapour, or mist mixed with air. Dust zones use a different classification system, such as Zone 20, Zone 21, and Zone 22.
Normally no. Zone 2 equipment is intended for lower-probability exposure. Zone 1 generally requires a higher level of protection and matching certification.
The full marking should be reviewed, including the Ex protection concept, gas group, temperature class, equipment protection level or category, ingress protection where relevant, ambient temperature range, and applicable certification scheme such as IECEx or ATEX.
No. IP66 only describes enclosure resistance to dust and water ingress. Zone 1 suitability depends on Ex certification and matching hazardous-area marking.
Oil and gas, petrochemical, chemical processing, offshore energy, pharmaceutical production, fuel handling, wastewater treatment, and biogas facilities are common examples.
